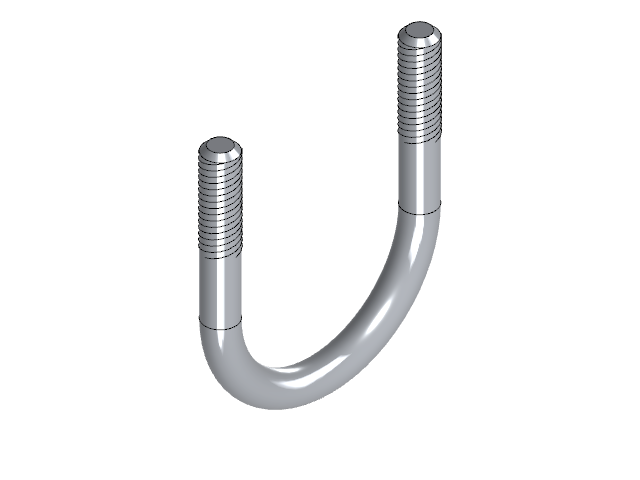

The stainless M3 U-bolt that clamps the Original Prusa MINI+'s bed bearings to the Y carriage: 3 mm wire bent round a 20 mm span, 26.5 mm tall, threaded M3 for 9 mm at each end, modelled from Prusa Research's drawing.
- Made by
ReDo.Pro- Kind
- Parametric part
- Licence
- CC BY-SA 4.0
- Keywords
- prusa, prusa mini, mini+, u-bolt, u bolt, clamp, m3, bearing clamp, stainless, 3d printer
| Overall size (X × Y × Z) | 23 × 3 × 26.5 mm |
|---|---|
| Volume | 432 mm³ |
| Height | 26.5 mm |
| Printer | Original Prusa MINI+ |
| Span | 20 |
| Thread | M3 |
