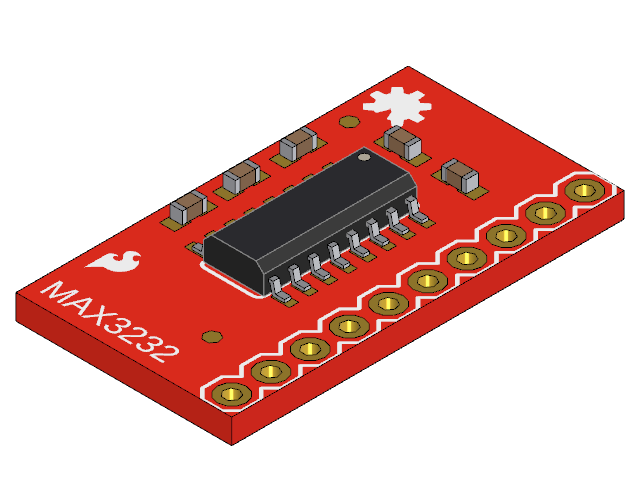

SparkFun's MAX3232 Breakout board outline: 25.40 by 13.97 mm with no plated holes, traced from the Eagle board file SparkFun publish for product 11189, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 11189
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, breakout, max3232, pcb, sparkfun, rs-232, rs232, transceiver, serial
| Overall size (X × Y × Z) | 25.4 × 14 × 3.5 mm |
|---|---|
| PCB size | 25.4 × 14 mm |
| PCB thickness | 1.6 mm |
| Through-hole pads | 10 |
| Components | 6 |
| Function | RS-232 transceiver |
| Form factor | board |
| Chip | MAX3232 |
| Interface | TTL serial |
| Supply voltage | 3-5.5 V |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 5 | SMD Capacitor0603 | .1uF | C1, C2, C3, C4, C5 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SOIC / SSOP / TSSOPSOIC-16 | MAX3232 | U1 | MAX3232 datasheet (Texas Instruments) |
