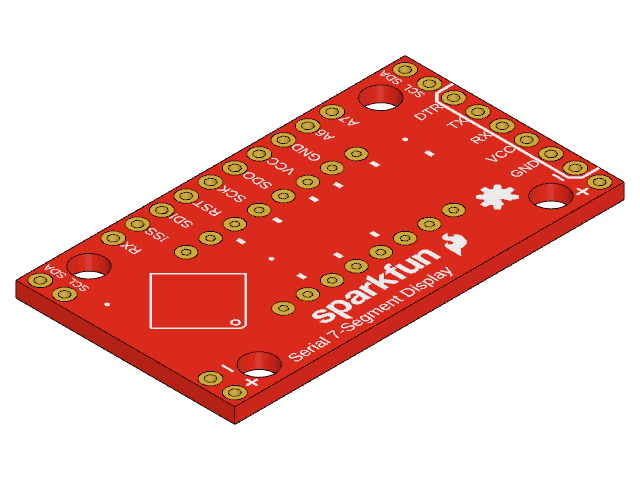

SparkFun's Serial 7-Segment Display board outline: 40.64 by 22.86 mm with 4 plated holes, traced from the Eagle board file SparkFun publish for product 11440.
- Made by
SparkFun- SKU
- 11440
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, display, pcb, segment, serial, sparkfun, 7-segment, seven segment, uart, i2c, spi
| PCB size | 40.6 × 22.9 mm |
|---|---|
| PCB thickness | 1.6 mm |
| Mounting holes | 4 × Ø3.3 mm |
| Through-hole pads | 39 |
| Function | display |
| Form factor | board |
| Chip | ATmega328P |
| Interface | UART, I2C, SPI |
| Supply voltage | 3.0-5.5 V |
| Status | discontinued |
