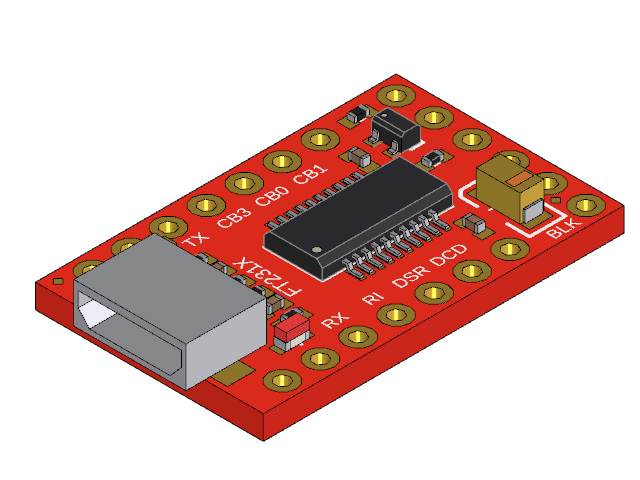

SparkFun's FT231X Breakout board outline: 24.13 by 15.24 mm with no plated holes, traced from the Eagle board file SparkFun publish for product 11736, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 11736
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, breakout, ft231x, pcb, sparkfun, usb to serial, usb, uart, serial
| Overall size (X × Y × Z) | 25.4 × 15.2 × 4.4 mm |
|---|---|
| PCB size | 24.1 × 15.2 mm |
| PCB thickness | 1.6 mm |
| Through-hole pads | 20 |
| Components | 16 |
| Function | USB to serial converter |
| Form factor | board |
| Chip | FT231X |
| USB connector | Micro-B |
| Interface | UART |
| Logic level | 3.3 or 5 V |
| Status | discontinued |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 2 | SMD Capacitor0402 | 0.1uF | C2, C5 | X7R SMD MLCC series datasheet (KEMET) |
| × 2 | SMD Capacitor0402 | 47pF | C3, C4 | X7R SMD MLCC series datasheet (KEMET) |
| × 2 | SMD Resistor0402 | 1k | R3, R4 | RC_L series datasheet (Yageo) |
| × 2 | SMD Resistor0402 | 10k | R5, R6 | RC_L series datasheet (Yageo) |
| × 2 | SMD Resistor0402 | 27 | R1, R2 | RC_L series datasheet (Yageo) |
| × 1 | SMD LED0603 · red | RED | LED1 | |
| × 1 | SMD LED0603 · yellow | YELLOW | LED2 | |
| × 1 | SMD Tantalum CapacitorA | 10uF | C1 | T491 series datasheet (KEMET) |
| × 1 | SOIC / SSOP / TSSOPSSOP-20 3.9x8.7 | FT231XS | U1 | FT231X datasheet (FTDI) |
| × 1 | SOTSOT-323 | 2N7002PW | Q1 | 2N7002PW datasheet (Nexperia) |
| × 1 | USB ReceptacleMicro-B | USB-MICROB | X1 |
