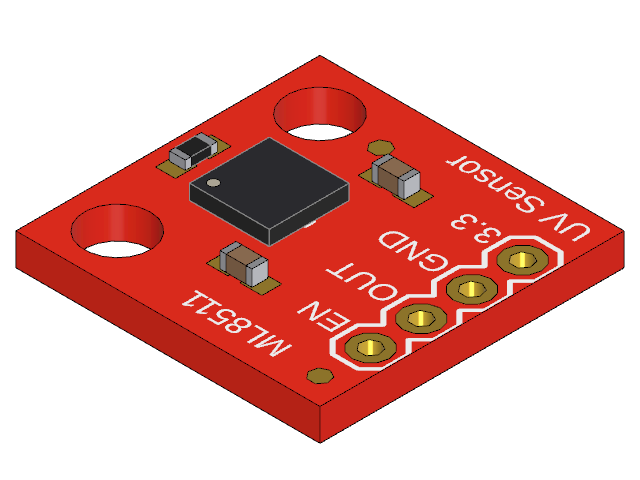

SparkFun's ML8511 Breakout board outline: 15.24 by 15.24 mm with 2 plated holes, traced from the Eagle board file SparkFun publish for product 12705, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 12705
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, breakout, ml8511, pcb, sparkfun, uv sensor, ultraviolet, analog
| Overall size (X × Y × Z) | 15.2 × 15.2 × 2.5 mm |
|---|---|
| PCB size | 15.2 × 15.2 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 2 × Ø3.3 mm |
| Through-hole pads | 4 |
| Components | 4 |
| Function | UV sensor |
| Form factor | board |
| Chip | ML8511 |
| Interface | analog |
| Range | 280-390 nm |
| Status | discontinued |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 1 | QFN / DFNWQFN-12 4x4 P1 | ML8511-UV-SENSOR | U1 | ML8511 datasheet (LAPIS Semiconductor) |
| × 1 | SMD Capacitor0603 | 0.1uF | C2 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SMD Capacitor0603 | 1nF | C1 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SMD Resistor0603 | 10K | R1 | RC_L series datasheet (Yageo) |
