SparkFun EL Sequencer

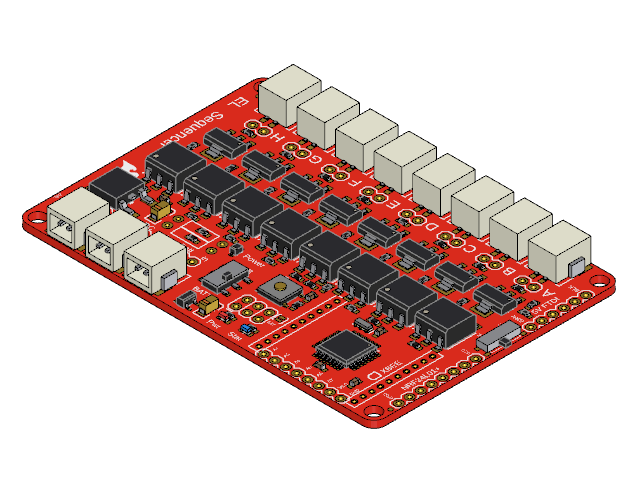

SparkFun's EL Sequencer board outline: 57.15 by 82.55 mm with 8 plated holes, traced from the Eagle board file SparkFun publish for product 12781, with the component bodies eagleUp rendered on it.

Made by
SparkFun
SKU
12781
Kind
Circuit board (PCB)
Licence
CC-BY-SA-4.0
Keywords
board, pcb, sequencer, sparkfun, el wire, electroluminescent, controller, atmega328p
Overall size (X × Y × Z)57.2 × 83.1 × 7.2 mm
PCB size57.2 × 82.6 mm
PCB thickness1.6 mm
Mounting holes4 × Ø3.3 mm
Through-hole pads74
Components77
FunctionEL wire controller
Form factorboard
ChipATmega328P
Clock speed8 MHz
Supply voltage3.3-16 V
Channels8
Statusdiscontinued
