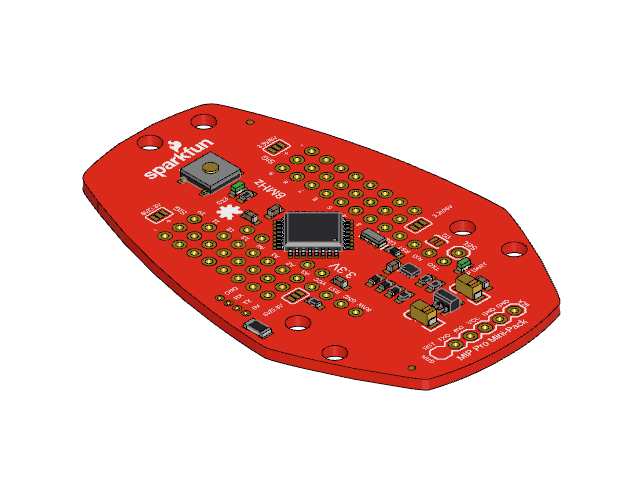

SparkFun's MiP ProMini Pack board outline: 41.42 by 63.77 mm with 6 plated holes, traced from the Eagle board file SparkFun publish for product 13058, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 13058
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, mip, pack, pcb, promini, sparkfun, pro mini, microcontroller, atmega328
| Overall size (X × Y × Z) | 41.4 × 63.8 × 3.5 mm |
|---|---|
| PCB size | 41.4 × 63.8 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 6 × Ø3.2 mm |
| Through-hole pads | 70 |
| Components | 24 |
| Function | microcontroller board |
| Form factor | board |
| Chip | ATmega328 |
| Clock speed | 8 MHz |
| Logic level | 3.3 V |
| Status | discontinued |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 5 | SMD Capacitor0603 | 0.1uF | C1, C2, C3, C4, C10 | X7R SMD MLCC series datasheet (KEMET) |
| × 5 | SMD Resistor0603 | 1K | R7, R8, R9, R10, R11 | RC_L series datasheet (Yageo) |
| × 3 | SMD Resistor0603 | 10K | R2, R4, R5 | RC_L series datasheet (Yageo) |
| × 2 | SMD LED0603 · green | Green | D3, D4 | |
| × 2 | SMD Tantalum CapacitorA | 10uF | C13, C19 | T491 series datasheet (KEMET) |
| × 1 | QFN / DFNUQFN-10 1.5x2 P0.5 | TS3USB221A | U3 | TS3USB221A datasheet (Texas Instruments) |
| × 1 | QFPTQFP-32 7x7 P0.8 | ATMEGA328 | U1 | ATmega328P datasheet (Microchip) |
| × 1 | SMD CrystalResonator 3012 | 8MHz | Q1 | |
| × 1 | SMD Fuse1206 | PTCSMD | F1 | |
| × 1 | SMD Resistor0603 | 330 | R6 | RC_L series datasheet (Yageo) |
| × 1 | SMD Tactile SwitchTL3342 | Reset | S1 | TL3342 datasheet (E-Switch) |
| × 1 | SOTSOT-23-5 | MIC5205 | U2 | MIC5205 datasheet (Microchip) |
