SparkFun OpenScale

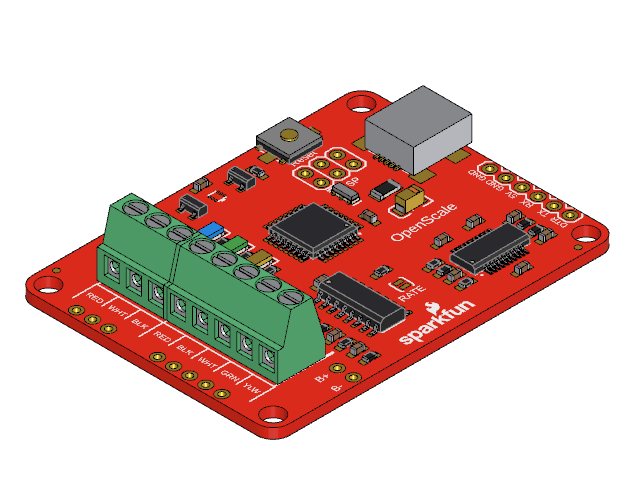

SparkFun's OpenScale board outline: 54.61 by 40.64 mm with 6 plated holes, traced from the Eagle board file SparkFun publish for product 13261, with the component bodies eagleUp rendered on it.

Made by
SparkFun
SKU
13261
Kind
Circuit board (PCB)
Licence
CC-BY-SA-4.0
Keywords
board, openscale, pcb, sparkfun, load cell, hx711, usb, scale, amplifier
Overall size (X × Y × Z)55.5 × 40.7 × 13.7 mm
PCB size54.6 × 40.6 mm
PCB thickness1.6 mm
Mounting holes4 × Ø3.3 mm
Through-hole pads30
Components46
Functionload cell amplifier
Form factorboard
ChipATmega328P, HX711, TMP102
USB connectorMini-B
InterfaceUSB
Supply voltage5 V
Resolution24 bit
