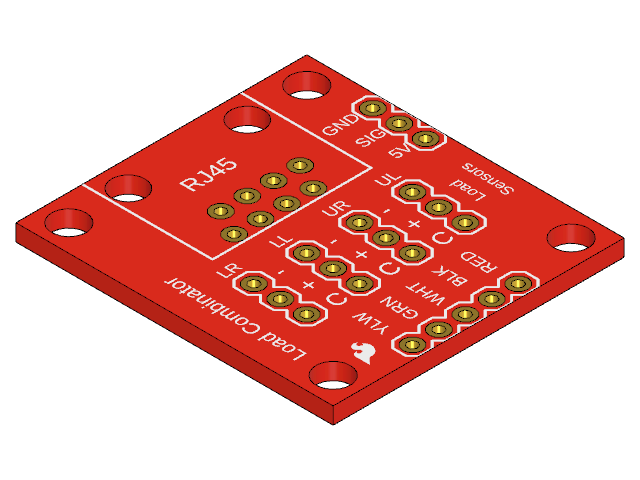

SparkFun's Load Sensor Combinator board outline: 27.94 by 30.48 mm with 6 plated holes, traced from the Eagle board file SparkFun publish for product 13878.
- Made by
SparkFun- SKU
- 13878
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, combinator, load, pcb, sensor, sparkfun, load cell
| Overall size (X × Y × Z) | 27.9 × 30.5 × 1.7 mm |
|---|---|
| PCB size | 27.9 × 30.5 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 4 × Ø3.3 mm, 2 × Ø3.2 mm |
| Through-hole pads | 28 |
| Function | load sensor combinator |
| Form factor | board |
