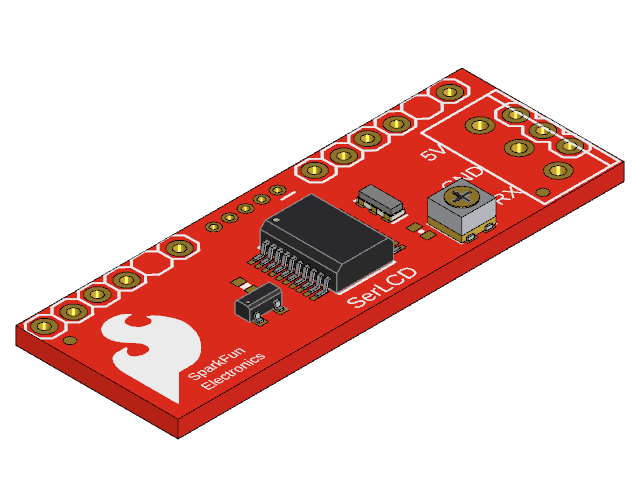

SparkFun's Serial Enabled LCD Backpack v2.8 board outline: 41.91 by 15.24 mm with no plated holes, traced from the Eagle board file SparkFun publish for product 258, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 258
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- backpack, board, lcd, pcb, serial, sparkfun, display, pic16lf88, ttl
| Overall size (X × Y × Z) | 41.9 × 15.2 × 3.9 mm |
|---|---|
| PCB size | 41.9 × 15.2 mm |
| PCB thickness | 1.6 mm |
| Through-hole pads | 21 |
| Components | 4 |
| Function | serial LCD backpack |
| Form factor | board |
| Chip | PIC16LF88 |
| Interface | TTL serial |
| Status | discontinued |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 1 | SMD CrystalResonator 3012 | RESONATORSMD | Y1 | |
| × 1 | SMD TrimmerTC33 | TRIMPOTSMD | R2 | |
| × 1 | SOIC / SSOP / TSSOPSSOP-20 5.3x7.2 | PIC16F88-SSOP | IC1 | PIC16F88 datasheet (Microchip) |
| × 1 | SOTSOT-23-3 | TRANSISTOR_PNPSMD | Q1 |
