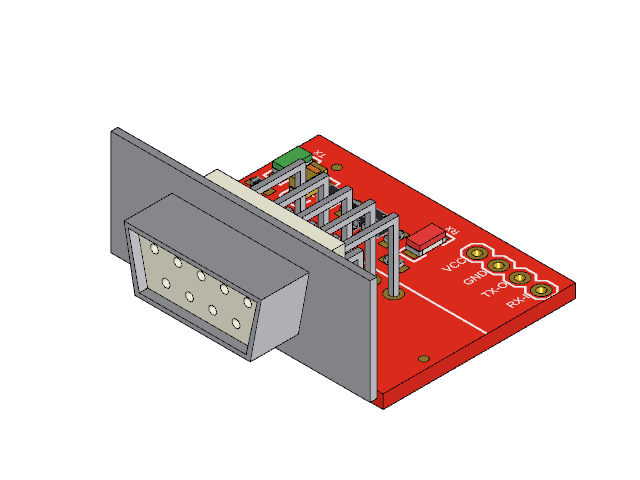

SparkFun's RS232 Shifter SMD board outline: 22.86 by 30.48 mm with no plated holes, traced from the Eagle board file SparkFun publish for product 449, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 449
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, pcb, rs232, sparkfun, rs-232, ttl, serial, converter, level shifter
| Overall size (X × Y × Z) | 30.3 × 30.8 × 16.4 mm |
|---|---|
| PCB size | 22.9 × 30.5 mm |
| PCB thickness | 1.6 mm |
| Through-hole pads | 13 |
| Components | 10 |
| Function | RS232 to TTL converter |
| Form factor | board |
| Interface | TTL serial |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 2 | SMD Resistor0603 | 10K | R1, R2 | RC_L series datasheet (Yageo) |
| × 2 | SMD Resistor0603 | 330 | R3, R4 | RC_L series datasheet (Yageo) |
| × 1 | D-Sub Connector | DB9 | JP1 | |
| × 1 | SMD DiodeSOD-323 | BAS16 | D1 | BAS16 datasheet (Nexperia) |
| × 1 | SMD LED1206 · green | Grn | D5 | |
| × 1 | SMD LED1206 · red | Red | D4 | |
| × 1 | SMD Tantalum CapacitorA | 10uF | C4 | T491 series datasheet (KEMET) |
| × 1 | SOTSOT-23-6 | XN04312 | U2 |
