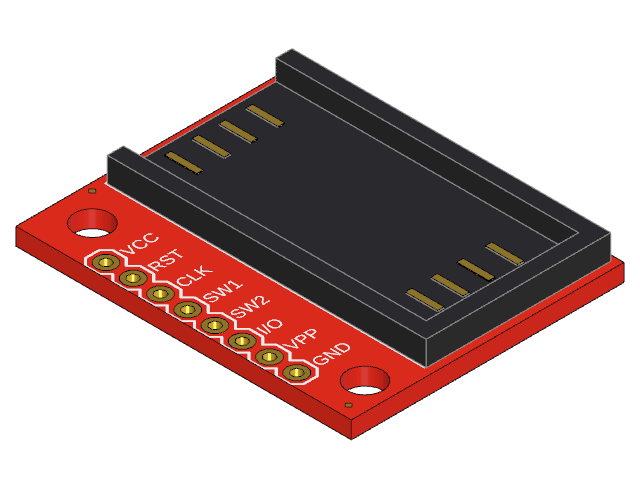

SparkFun's SIM Card Breakout board outline: 25.40 by 31.24 mm with 2 plated holes, traced from the Eagle board file SparkFun publish for product 573, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 573
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, breakout, pcb, sim, sparkfun, sim card, socket
| Overall size (X × Y × Z) | 25.4 × 31.2 × 4 mm |
|---|---|
| PCB size | 25.4 × 31.2 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 2 × Ø3.3 mm |
| Through-hole pads | 8 |
| Components | 1 |
| Function | SIM card socket breakout |
| Form factor | board |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 1 | SIM Holder8-pin | SIMHOLDER | U2 |
