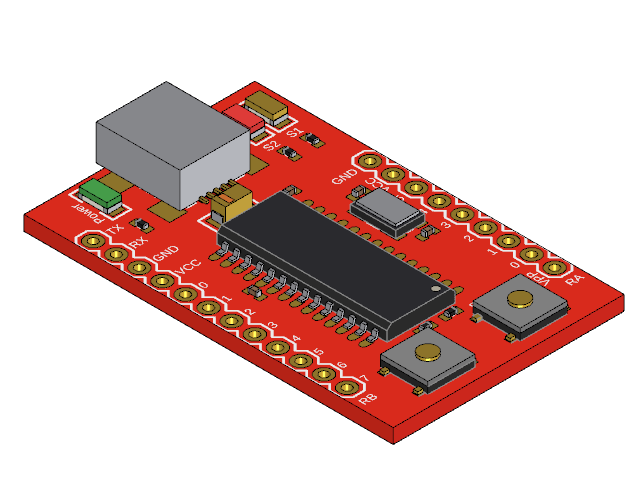

SparkFun's USB Bit Whacker 18F2553 board outline: 25.40 by 40.64 mm with 2 plated holes, traced from the Eagle board file SparkFun publish for product 762, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 762
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- 18f2553, bit, board, pcb, sparkfun, usb, whacker, microcontroller, pic18f2553, pic
| Overall size (X × Y × Z) | 25.4 × 41.5 × 5.6 mm |
|---|---|
| PCB size | 25.4 × 40.6 mm |
| PCB thickness | 1.6 mm |
| Through-hole pads | 26 |
| Components | 18 |
| Function | microcontroller board |
| Form factor | board |
| Chip | PIC18F2553 |
| GPIO pins | 16 |
| USB connector | Mini-B |
| Status | discontinued |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 3 | SMD Resistor0402 | 330 | R1, R2, R3 | RC_L series datasheet (Yageo) |
| × 2 | SMD Capacitor0402 | 0.1uF | C1, C2 | X7R SMD MLCC series datasheet (KEMET) |
| × 2 | SMD Capacitor0402 | 22pF | C4, C5 | X7R SMD MLCC series datasheet (KEMET) |
| × 2 | SMD Resistor0402 | 10K | R4, R5 | RC_L series datasheet (Yageo) |
| × 1 | SMD Crystal5032 4-pin | 24MHz | Q1 | |
| × 1 | SMD LED1206 · green | Green | LED1 | |
| × 1 | SMD LED1206 · red | Red | LED3 | |
| × 1 | SMD LED1206 · yellow | Yellow | LED2 | |
| × 1 | SMD Tactile SwitchTL3342 | PRG | S2 | TL3342 datasheet (E-Switch) |
| × 1 | SMD Tactile SwitchTL3342 | Reset | S1 | TL3342 datasheet (E-Switch) |
| × 1 | SMD Tantalum CapacitorA | 10uF | C3 | T491 series datasheet (KEMET) |
| × 1 | SOIC / SSOP / TSSOPSOIC-28W 7.5x18.7 | PIC18F2553 | U2 | PIC18F2553 datasheet (Microchip) |
| × 1 | USB ReceptacleMini-B | USBSMD | X1 | 2486 01 USB Mini-B datasheet (Lumberg) |
