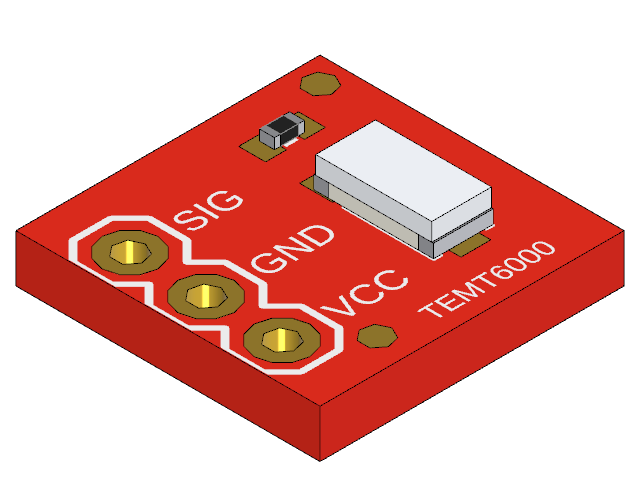

SparkFun's TEMT6000 Breakout board outline: 10.16 by 10.16 mm with no plated holes, traced from the Eagle board file SparkFun publish for product 8688, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 8688
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- board, breakout, pcb, sparkfun, temt6000, ambient light sensor, light sensor, sensor
| Overall size (X × Y × Z) | 10.2 × 10.2 × 2.7 mm |
|---|---|
| PCB size | 10.2 × 10.2 mm |
| PCB thickness | 1.6 mm |
| Through-hole pads | 3 |
| Components | 2 |
| Function | ambient light sensor |
| Form factor | board |
| Chip | TEMT6000 |
| Interface | analog |
| Supply voltage | 3.3-5 V |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 1 | SMD LED4020 · white | TEMT6000 | U1 | TEMT6000 datasheet (Vishay) |
| × 1 | SMD Resistor0402 | 10K | R1 | RC_L series datasheet (Yageo) |
