SparkFun Bus Pirate

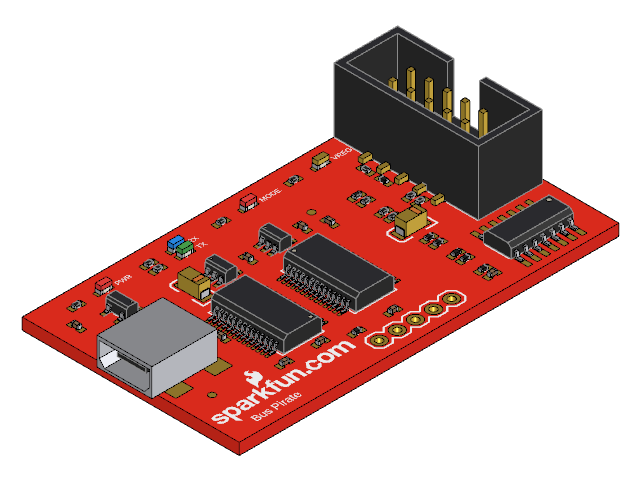

SparkFun's Bus Pirate board outline: 53.34 by 30.48 mm with 2 plated holes, traced from the Eagle board file SparkFun publish for product 9544, with the component bodies eagleUp rendered on it.

Made by
SparkFun
SKU
9544
Kind
Circuit board (PCB)
Licence
CC-BY-SA-4.0
Keywords
board, bus pirate, pcb, sparkfun, serial protocol, debugging tool, pic24fj64, ft232rl
Overall size (X × Y × Z)54.9 × 30.5 × 10.7 mm
PCB size53.3 × 30.5 mm
PCB thickness1.6 mm
Through-hole pads5
Components43
Functionserial protocol debugging tool
Form factorboard
ChipPIC24FJ64, FT232RL
Statusdiscontinued
