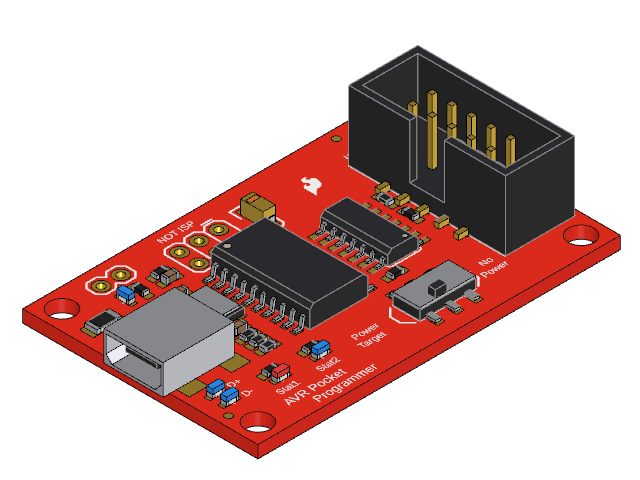

SparkFun's AVR Pocket Programmer board outline: 46.99 by 30.48 mm with 8 plated holes, traced from the Eagle board file SparkFun publish for product 9825, with the component bodies eagleUp rendered on it.
- Made by
SparkFun- SKU
- 9825
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- avr, board, pcb, pocket, programmer, sparkfun, usb, attiny2313
| Overall size (X × Y × Z) | 48.3 × 30.5 × 10.7 mm |
|---|---|
| PCB size | 47 × 30.5 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 4 × Ø3.3 mm |
| Through-hole pads | 8 |
| Components | 26 |
| Function | AVR programmer |
| Form factor | board |
| Chip | ATtiny2313 |
| USB connector | Mini-B |
| Interface | USB |
| Output | 5 V |
| Current | up to 500 mA to the target |
| Status | discontinued |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 4 | SMD LED0603 · blue | Blue | D1, D3, LED1, LED2 | |
| × 4 | SMD Resistor0603 | 1K | R4, R5, R6, R9 | RC_L series datasheet (Yageo) |
| × 2 | SMD Capacitor0603 | 22pF | C3, C4 | X7R SMD MLCC series datasheet (KEMET) |
| × 2 | SMD Resistor0603 | 27 | R1, R2 | RC_L series datasheet (Yageo) |
| × 2 | SMD Resistor0603 | 100 | R7, R8 | RC_L series datasheet (Yageo) |
| × 1 | Box Header5 · smd | AVR_SPI_PROG2SHROUDED_SMD | JP3 | |
| × 1 | Slide SwitchAYZ0202 | Power Select | S1 | |
| × 1 | SMD Capacitor0603 | 0.1uF | C2 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SMD Crystal5032 4-pin | 12 MHz | Q1 | |
| × 1 | SMD Fuse1206 | 500mA | F1 | |
| × 1 | SMD LED0603 · red | Red | D2 | |
| × 1 | SMD Resistor0603 | 1.5K | R3 | RC_L series datasheet (Yageo) |
| × 1 | SMD Resistor0603 | 22K | R10 | RC_L series datasheet (Yageo) |
| × 1 | SMD Tantalum CapacitorA | 10uF | C1 | T491 series datasheet (KEMET) |
| × 1 | SOIC / SSOP / TSSOPSOIC-14 | 74ACT125D | U2 | SN74ACT125/74ACT125 datasheet (Texas Instruments) |
| × 1 | SOIC / SSOP / TSSOPSOIC-20W | ATTINY2313-20S | U1 | ATtiny2313 datasheet (Microchip) |
| × 1 | USB ReceptacleMini-B | USBSMD | X2 | 2486 01 USB Mini-B datasheet (Lumberg) |
