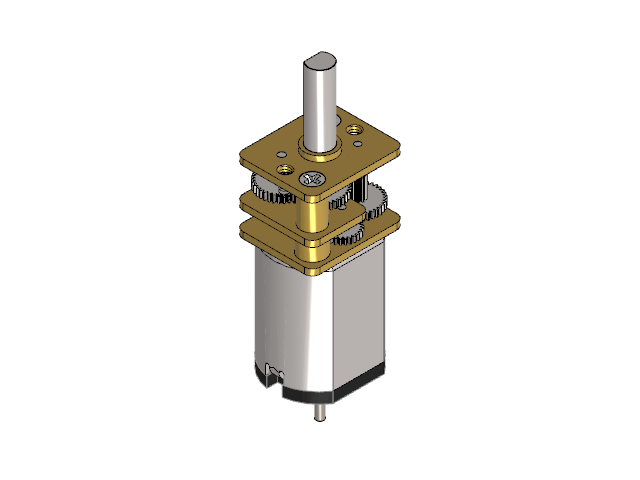

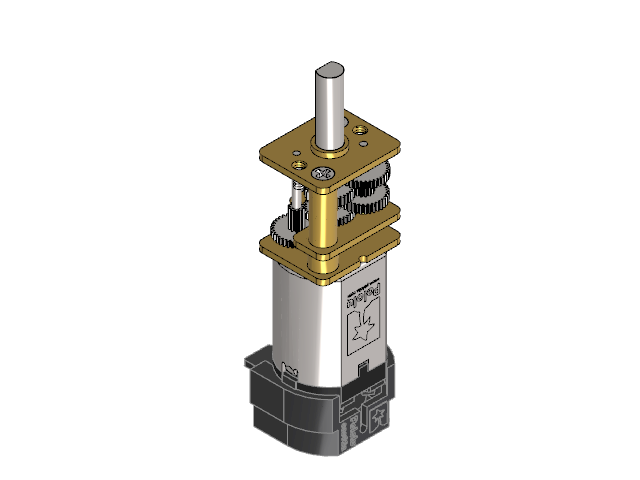

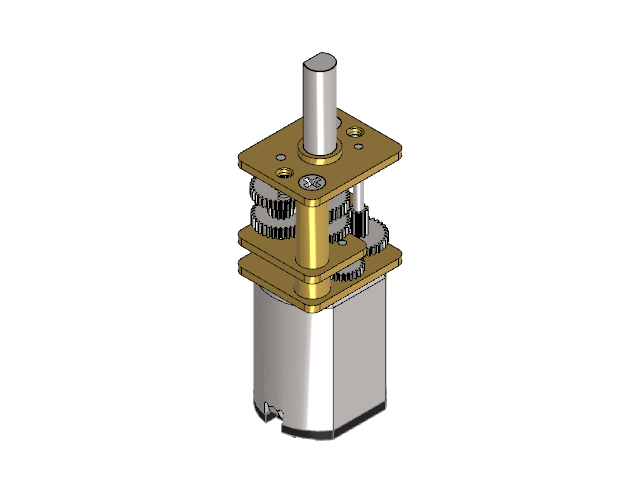

Pololu's micro metal gearmotor, from their own CAD. Thirteen gear ratios and two voltages pick the motor you mean, and the back of it is the other choice: bare, the motor shaft brought out for an encoder disc, or the magnetic encoder itself with its connector out the back or out the side. Only the 1000:1 gearbox, the carbon-brush can and that back change the shape, so most of the choice is recorded rather than drawn. Every one of them is the same 3 mm D-shaft and the same two M1.6 face mounts.

Made by

Pololu

Kind

3D model

Licence

CC-BY-SA-4.0

Keywords

12v, 6v, actuator, connector, drive, encoder, extended, gearmotor, metal, micro, motor, pololu, quadrature, ratio, dc motor
