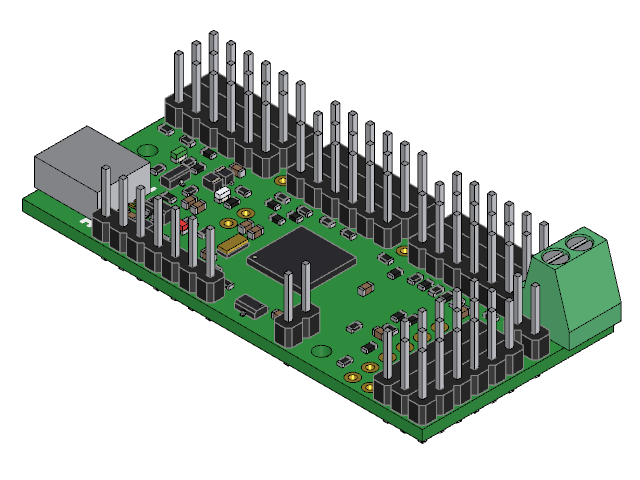

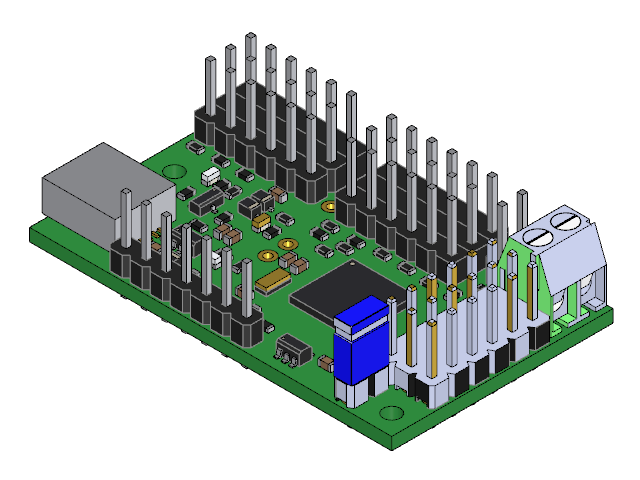

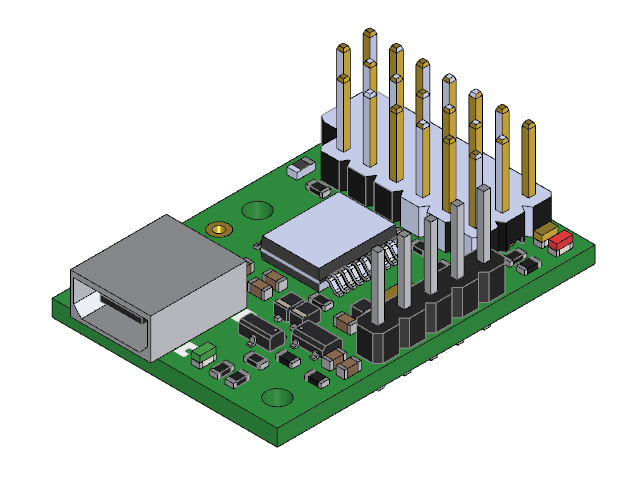

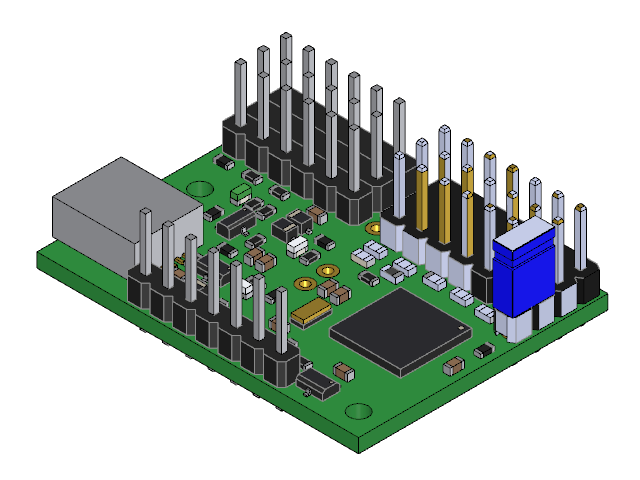

Pololu's Maestro servo controllers behind one tile: six, twelve, eighteen or twenty-four channels of RC servo drive from USB, TTL serial or an internal script. The servo block is three columns — signal, + and - — with one row per channel.
- Made by
Pololu- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- pololu, maestro, servo, controller, usb, serial, rc, pwm, script, sequencer, servo driver
| Overall size (X × Y × Z) | 31.2 × 21.6 × 11.5 mm |
|---|---|
| PCB size | 30.5 × 21.6 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 2 × Ø2.2 mm |
| Through-hole pads | 29 |
| Components | 32 |
| Function | servo controller |
| USB connector | Mini-B |
| Interface | USB, TTL serial |
| Logic level | 5 V |
| Supply voltage | 5-16 V |
| Channels | 6 |
| Resolution | 0.25 us pulse width |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 13 | SMD Resistor0603 | B2, B5, B6, B13, B15, B16, B17, B20, B21, B22, B26, B30, B32 | RC_L series datasheet (Yageo) | |
| × 6 | SMD Capacitor0603 | B3, B7, B14, B28, B29, B31 | X7R SMD MLCC series datasheet (KEMET) | |
| × 3 | SMD DiodeSOD-323 | B9, B19, B24 | ||
| × 1 | Headermale · 5 · 1 | B1 | TSW through-hole male header datasheet (Samtec) | |
| × 1 | Pololu Component, 8.3 x 7.5 x 2.0 mm (grey) | B23 | ||
| × 1 | Pololu Component, 17.8 x 8.7 x 8.5 mm (tan) | B11 | ||
| × 1 | SMD Crystal3215 2-pin | B12 | ||
| × 1 | SMD LED0603 · red | B4 | ||
| × 1 | SMD LED0603 · yellow | B8 | ||
| × 1 | SMD LED0603 · green | B25 | ||
| × 1 | SOTSOT-23W | B10 | ||
| × 1 | SOTSOT-23-3 | B18 | ||
| × 1 | USB ReceptacleMini-B | B27 | 2486 01 USB Mini-B datasheet (Lumberg) |
