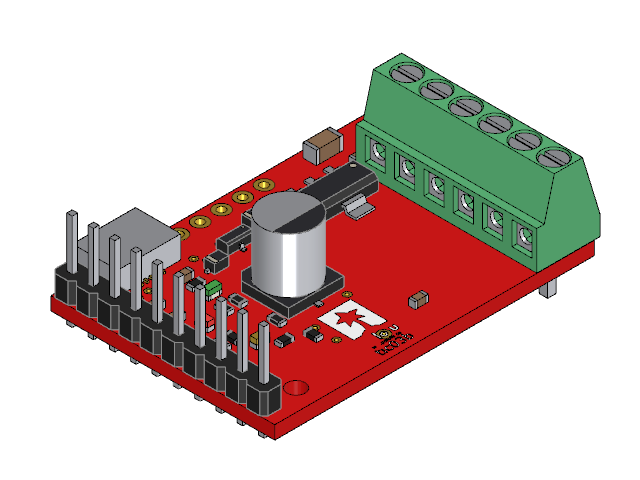

Tic Stepper Motor Controller

Pololu's Tic controllers behind one tile: a stepper driver with its own motion planner, driven over USB, I²C, TTL serial, RC or an analog voltage. Pick the model for the motor you have — the five differ in supply range and current, not in footprint.

Made by
Pololu
Kind
Circuit board (PCB)
Licence
CC-BY-SA-4.0
Keywords
pololu, tic, stepper, motor, controller, usb, i2c, serial, rc, driver, speed, position
Overall size (X × Y × Z)38.8 × 28.1 × 13.7 mm
PCB size38.1 × 26.7 mm
PCB thickness1.6 mm
Mounting holes2 × Ø2.2 mm
Through-hole pads39
Components60
Functionstepper motor controller
ChipDRV8825
USB connectorMicro-B
InterfaceUSB, TTL serial, I2C, RC, analog, quadrature encoder
Supply voltage8.5-45 V
Current1.5 A
Microsteppingup to 1/32
