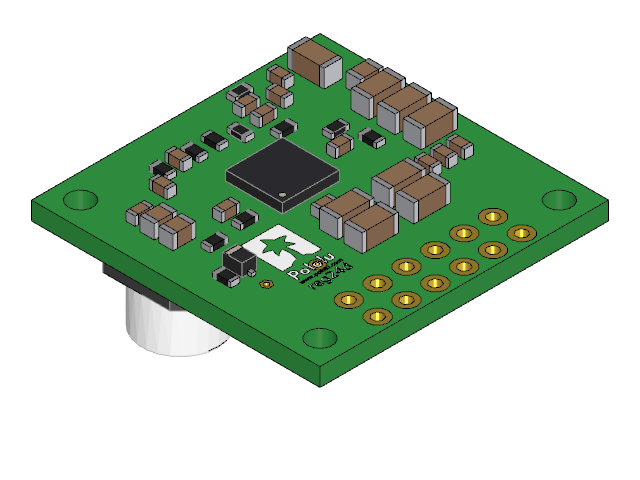

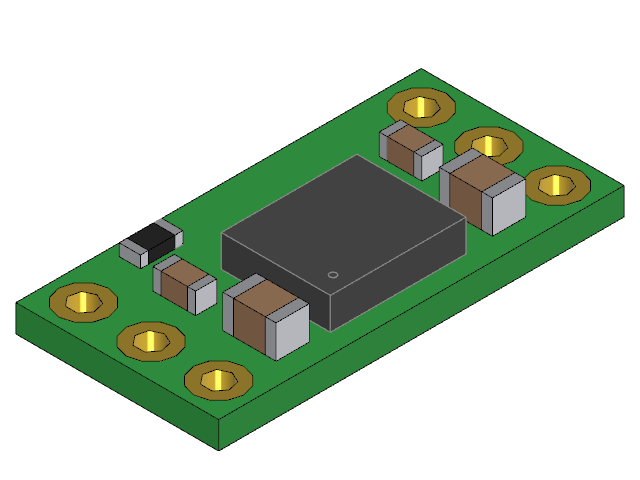

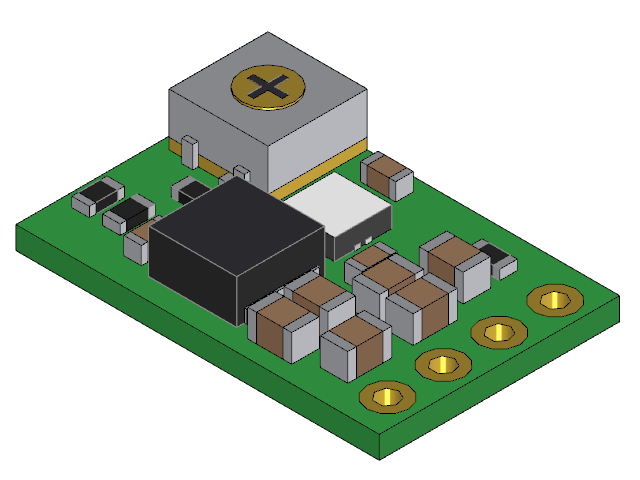

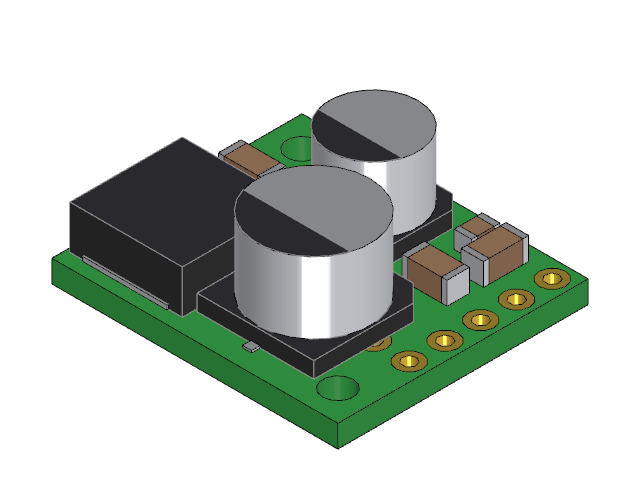

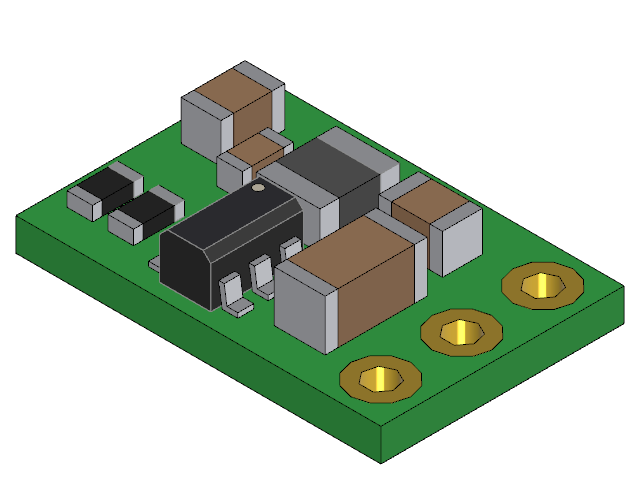

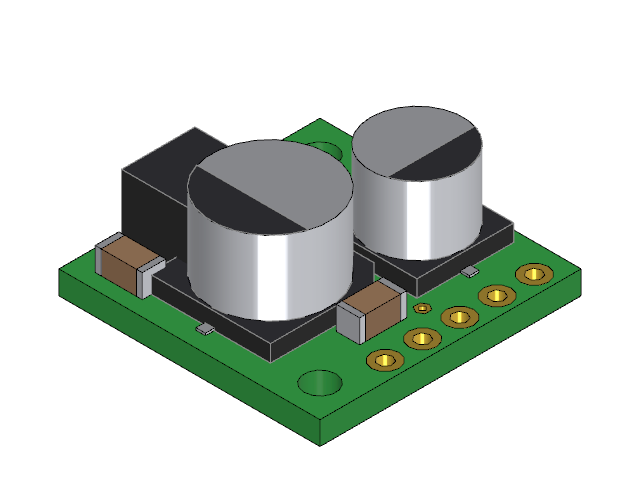

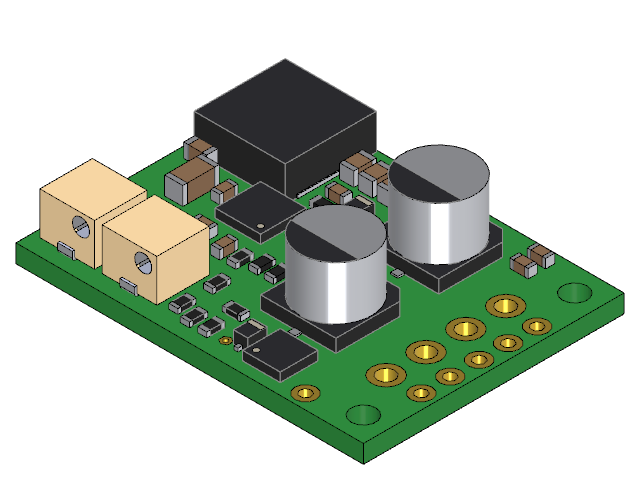

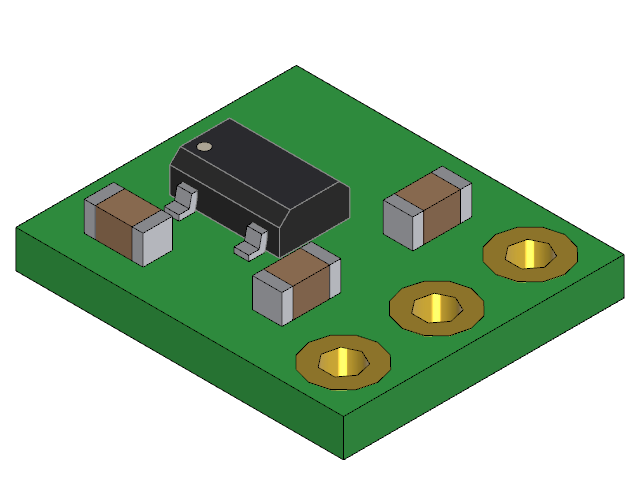

Switching voltage regulators on one tile — thirty-nine boards from Pololu, picked by whether they step down, step up, or do either, from the 7.62 × 11.43 mm D45V5Fx to the 43.18 × 31.75 mm D24V150Fx. A drawing here is a board rather than a SKU: Pololu list eleven output voltages against the one D42V110Fx, so the model picks the board and the output is a matter of which part you buy. Each declares its header row as contacts on the 0.1 inch pitch, read from the CAD.

Made by

Pololu

SKU

5384

Kind

Circuit board (PCB)

Licence

CC-BY-SA-4.0

Keywords

voltage, regulator, power, converter, step-down, step-up, buck, boost, board, electronics, dc-dc
