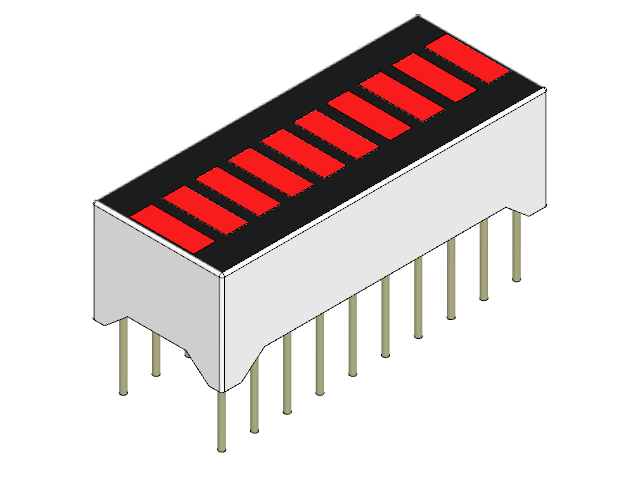

A ten-segment LED bargraph in a 20-pin package on 2.54 mm pitch: ten discrete LEDs behind one window, lit whatever colour you paint them.
- Made by
FreeCAD Library- Kind
- 3D model
- Licence
- CC-BY-3.0
- Keywords
- led, bargraph, bar graph, display, indicator, 10 segment, dip, level, meter
| Overall size (X × Y × Z) | 25.3 × 10.1 × 12.9 mm |
|---|---|
| Type | LED bargraph |
| Segments | 10 |
