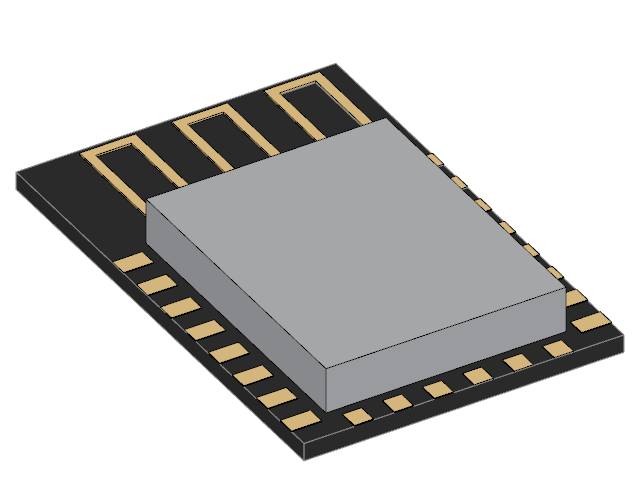

A radio module soldered flat to a board: its own PCB, the metal shield can, and the antenna, a printed meander or a chip; the castellated pads show at its edges. Boards place it at each such footprint.
- Made by
ReDo.Pro- Kind
- Parametric part
- Licence
- CC-BY-SA-4.0
- Keywords
- bluetooth, electronics, esp-12e, esp8266, mdbt50q, module, nrf52840, radio, wifi, ble, rn41, bc127, rn-52, imp002
| Overall size (X × Y × Z) | 16 × 24 × 3.2 mm |
|---|---|
| Volume | 763 mm³ |
