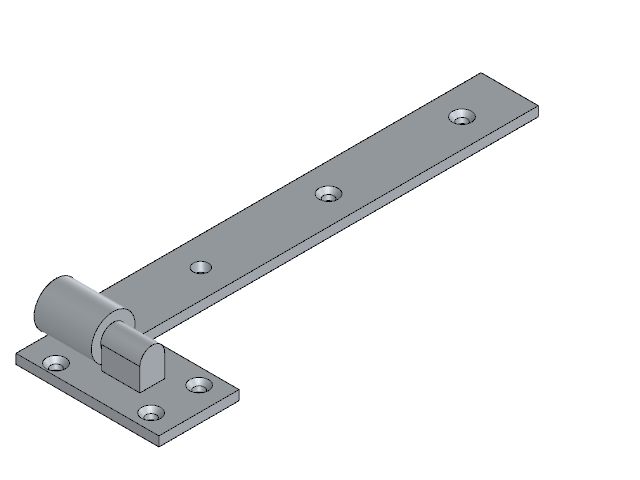

PN Beslag's 9" strap hinge, hot-dip galvanised, sold as a pair: a 30 × 5 mm strap rolled into an eye that lifts onto a 13 mm pin on a 42 × 75 mm plate pintle. The strap reaches 223 mm from the pin, with an 8 mm bolt hole and two countersunk holes for 5 mm screws; the plate takes three. The hole positions follow PN's 310 mm drawing. Sold by BAUHAUS (1060792) and Silvan (1655141).
- Made by
- PN Beslag
- Modelled by
- ReDo.Pro
- SKU
- 222100109
- Kind
- Parametric part
- Licence
- CC-BY-SA-4.0
- Keywords
- hinge, strap hinge, pintle, gate hinge, stabelhængsel, hængsel, gate, door, galvanised, pn beslag, 230
| Overall size (X × Y × Z) | 244 × 75 × 28.5 mm |
|---|---|
| Volume | 63.9 cm³ |
| Type | strap hinge |
| Material | hot-dip galvanised steel |
| Pin | 13 mm |
| Screw | 5 mm |
| Pack of | 2 |
| EAN | 5701984105563 |
| BAUHAUS item | 1060792 |
| Silvan item | 1655141 |
