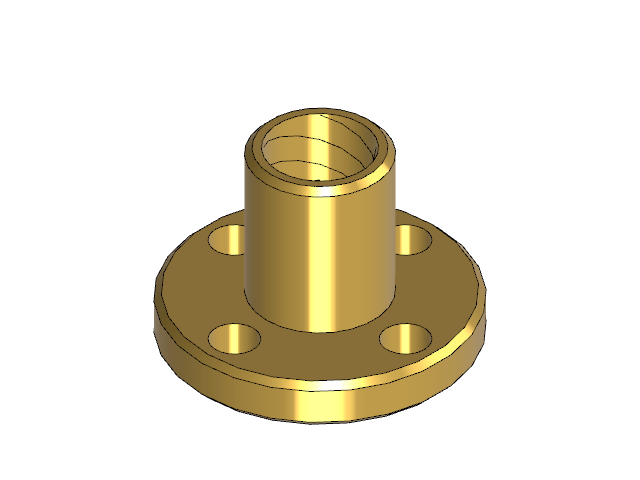

The flanged brass nut a T8 lead screw runs, for a lead of 2, 4 or 8 mm: a 22 mm flange 3.5 mm thick with four 3.5 mm holes for M3 on a 16 mm circle, and a 10 mm body, 15 mm long overall.
- Made by
ReDo.Pro- Kind
- Parametric part
- Licence
- CC-BY-SA-4.0
- Keywords
- lead screw nut, leadscrew nut, t8 nut, tr8, tr8x8, trapezoidal nut, flange nut, brass nut, z axis, 3d printer, cnc
| Overall size (X × Y × Z) | 22 × 22 × 15 mm |
|---|---|
| Volume | 1.4 cm³ |
