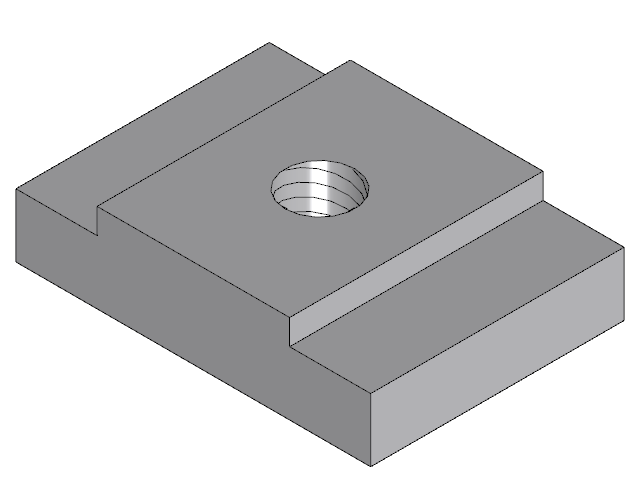

The M3 nut that slides in the Original Prusa MINI+'s 30 mm extrusions, Prusa's M3nE: a 10 × 14 mm steel plate 2.5 mm thick that bears on the underside of the slot's 2 mm lips, with a 7.6 mm tongue rising 1 mm into the 8 mm slot, tapped M3 through. Three of them join the Z column's base to the Y frame. Prusa publishes no drawing of it, so its sizes are fitted to the extrusion's slot.

Made by

ReDo.Pro

Kind

Parametric part

Licence

CC BY-SA 4.0

Keywords

prusa, prusa mini, mini+, m3ne, extrusion nut, slot nut, t-nut, sliding nut, m3, 3d printer
