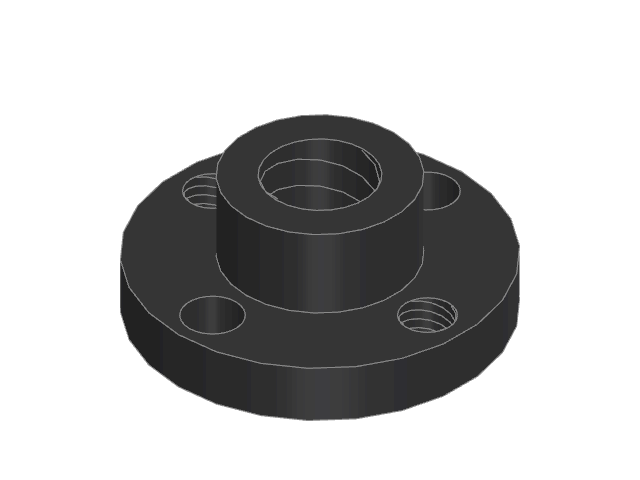

The black POM nut the Original Prusa MINI+'s Z lead screw runs in, held in the X end: a 25 mm flange 4 mm thick with two 4.1 mm holes and two M4 threads on a 19 mm circle, a 13 mm body, 10 mm long overall, threaded Tr8×4. From LDO Motors' drawing for Prusa Research.
- Made by
ReDo.Pro- Kind
- Parametric part
- Licence
- CC BY-SA 4.0
- Keywords
- prusa, prusa mini, mini+, z nut, lead screw nut, pom, tr8, t8, trapezoidal, 3d printer, z axis
| Overall size (X × Y × Z) | 25 × 25 × 10 mm |
|---|---|
| Volume | 2.1 cm³ |
| Length | 10 mm |
| Flange | 25 mm |
| Printer | Original Prusa MINI+ |
| Thread | Tr8×4 |
