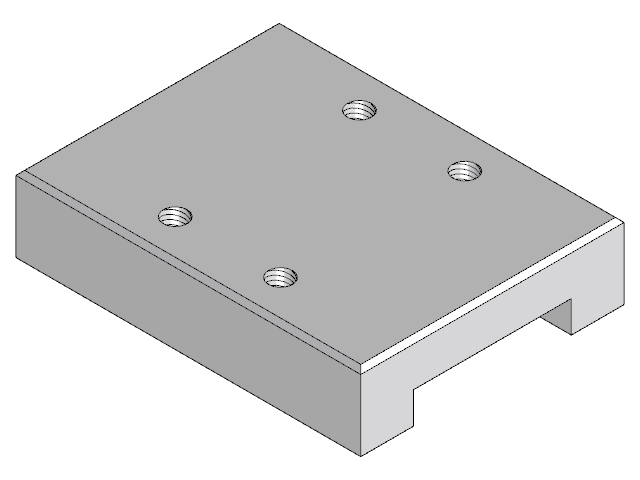

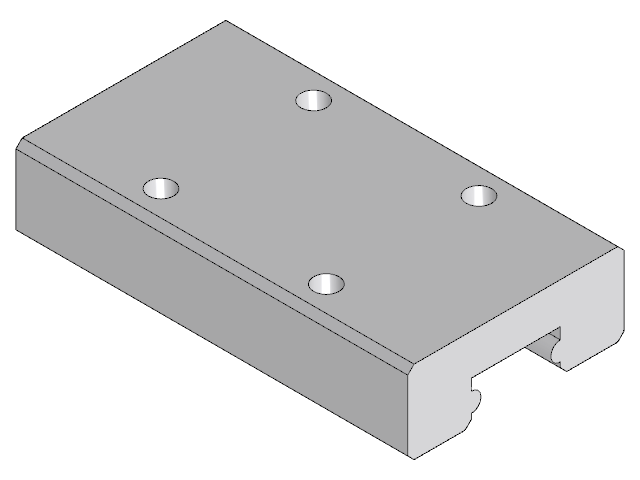

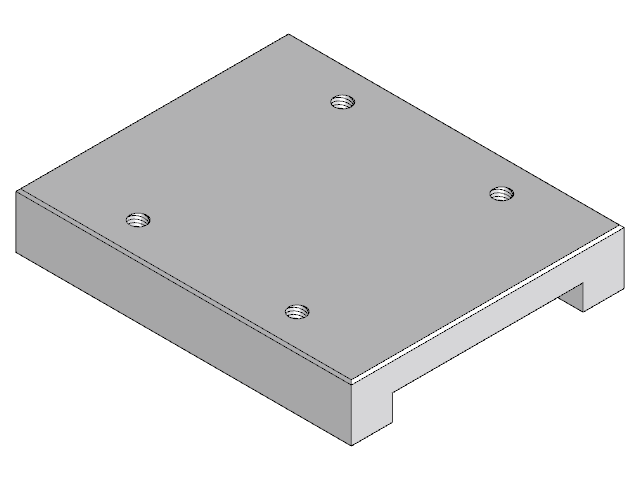

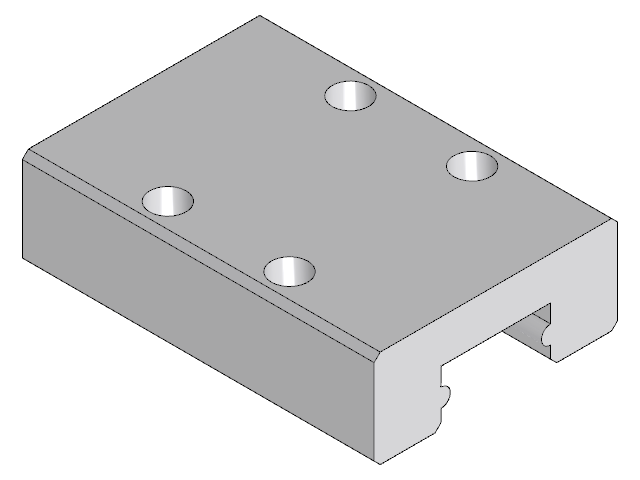

Every HIWIN MG carriage the Inventory carries behind one tile, the narrow MGN5C to MGN15H and the wide MGW7C to MGW15H: pick the block and it brings its rail series, its length and its threaded face with it. The MGN5 to MGN12 blocks are the FreeCAD Library's models; the MGN15 and MGW blocks are ReDo's, drawn from HIWIN's block tables.

Made by

FreeCAD Library

Kind

3D model

Licence

CC-BY-3.0

Keywords

linear guide, carriage, block, mgn, mgn5c, mgn7c, mgn7h, mgn9c, mgn9h, mgn12c, mgn12h, mgn15c, mgn15h, mgw, mgw7c, mgw7h, mgw9c, mgw9h, mgw12c, mgw12h, mgw15c, mgw15h, wide, linear motion, slide, rail, hiwin
