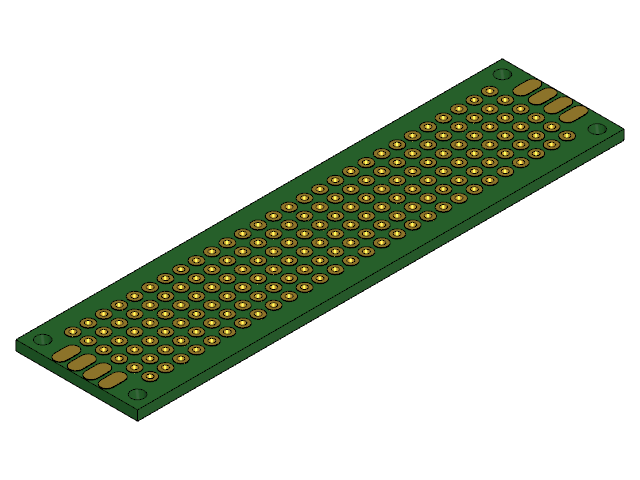

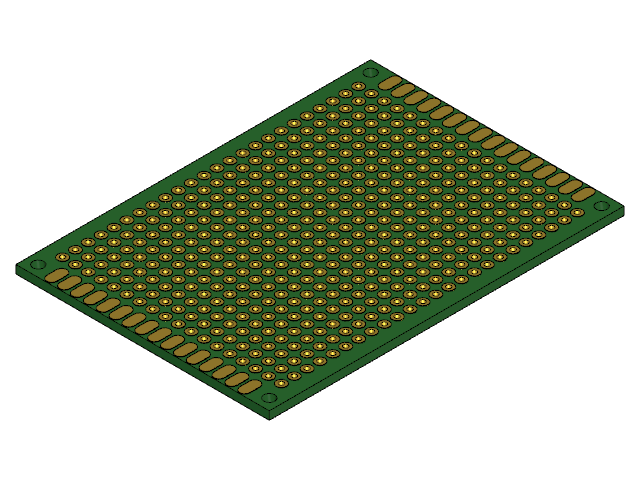

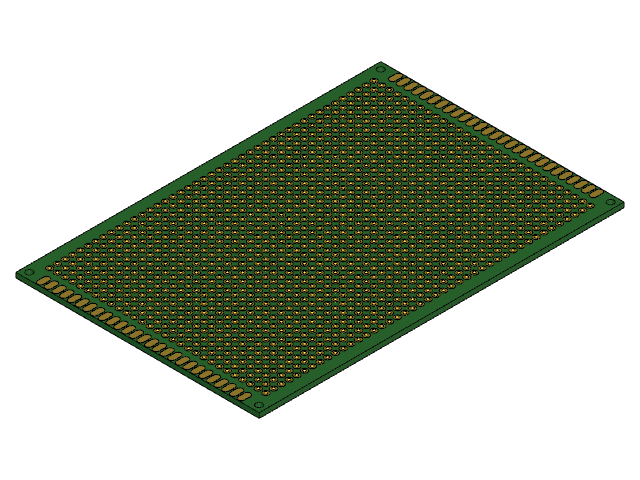

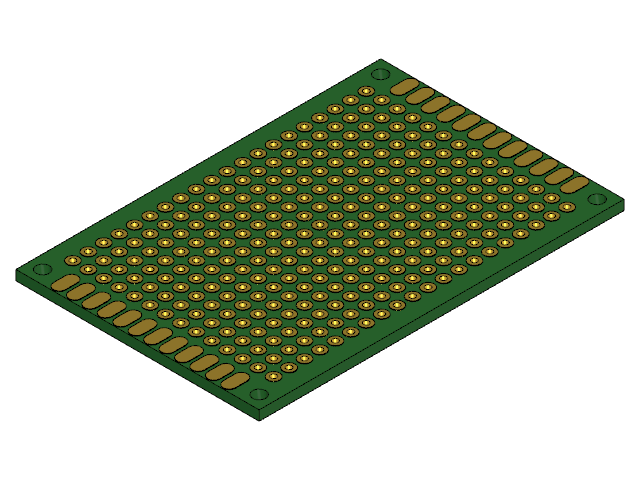

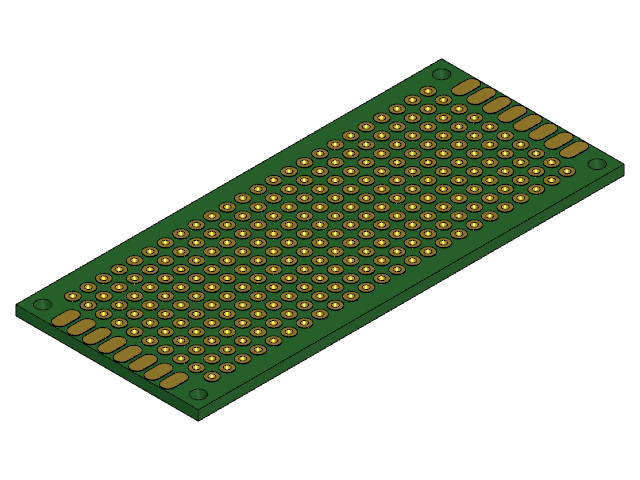

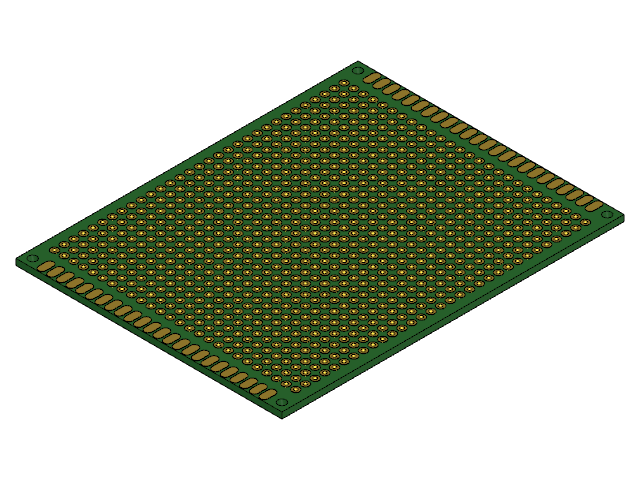

A double-sided prototyping board on the 0.1 inch grid, in the stock sizes they are sold in. Every size is the same 1.8 mm board and the same 2.54 mm pad grid; only how much of it there is changes.

Made by

ReDo.Pro

Kind

Circuit board (PCB)

Licence

CC-BY-SA-4.0

Keywords

protoboard, perfboard, prototyping, pads, solder, 2x8, 3x7, 4x6, 5x7, 7x9, 8x12
