The Wasp (LEGO Technic 8217)

Description

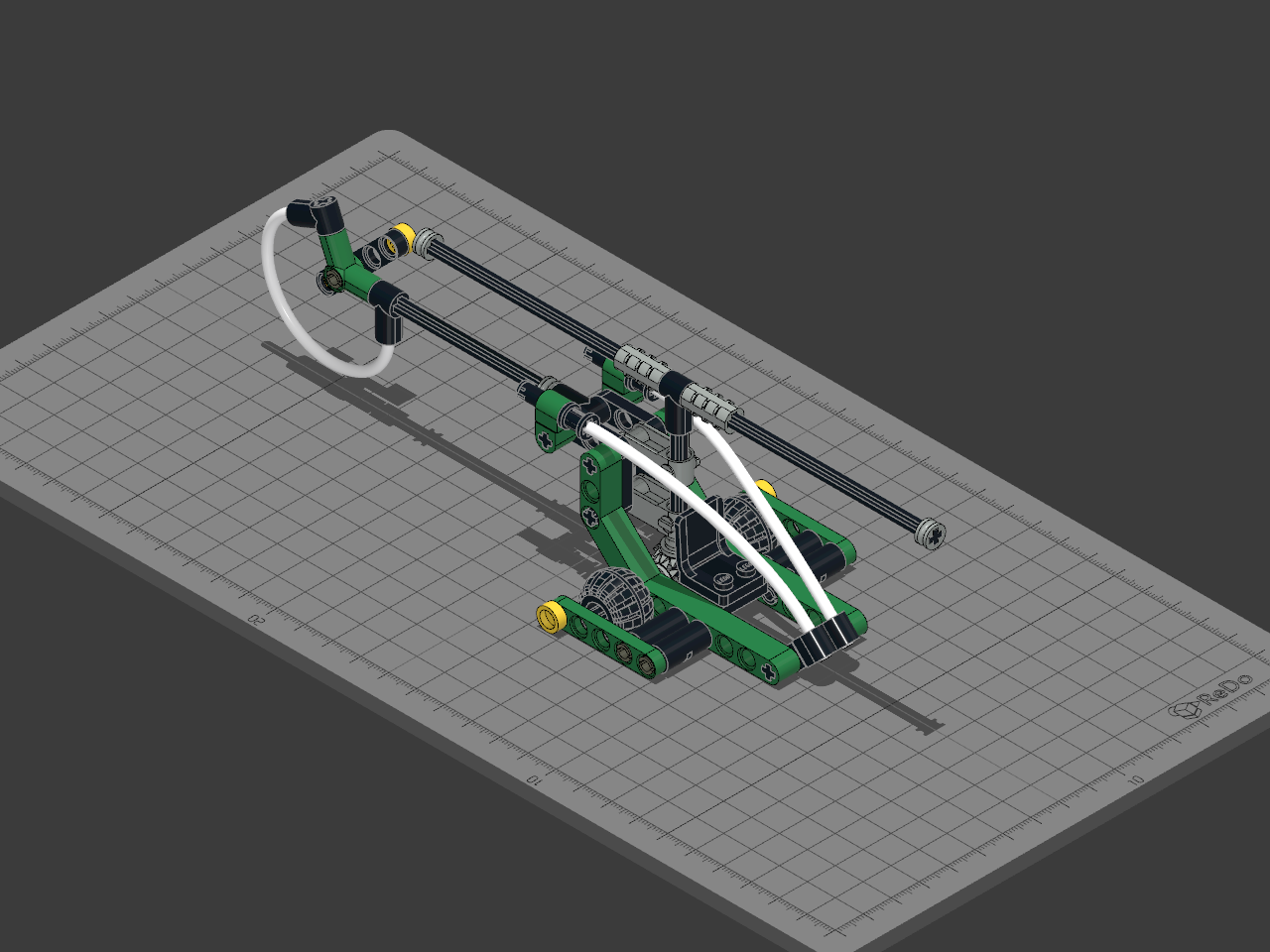

LEGO Technic set 8217, The Wasp, a little helicopter from 1998, built in ReDo from LEGO Technic parts by their part numbers: 63 pieces, each one the real part in its real colour, every pin and axle joined into the holes it goes through as the set is built. Its wheels turn a pair of bevel gears that spin the rotor, and its three white hoses plug into the parts that hold them: two sweep from the pins behind the rotor mast down to the nose, the third loops round the tail.

## Where it comes from

Each piece is placed where the LDraw community's model of the set puts it: *8217 - main* (Microtechnic Helicopter) by Jaco van der Molen, from LDraw's Official Model Repository, redistributable under CCAL 2.0 (CC BY 2.0). The parts are ReDo's own parametric LEGO parts, not LEGO's CAD.

## What is different from the box

- Older moulds are built as LEGO's current ones: the axle connectors (32039) as the reinforced 42135, the round pin connectors (75535) as 62462, the long pins (6558) as 42924, the friction pins (2780) as 61332 and one half bush (32123a) as 32123b.
- The model paints the set in later colours; here they are the 1998 set's: the bushes, gears and connectors the old Light Gray rather than 2004's bluish grey, the 3/4 pins Dark Gray rather than Tan, and the angled connector on the tail Green rather than Bright Green.
- The model draws the two bevel gears tooth on tooth; here the wheels' axle, its wheels and its gear are turned half a tooth (15°) so the gears mesh tooth in gap, as real ones do.
- The model draws its hoses as curves; here each is LEGO's 12L rigid hose pushed into its holes. The two front hoses turn about themselves after their first bend, since the holes they join face past each other.
- The sticker sheet is not applied, and the parts leave out what does not change how they fit, such as the hollows under a beam.

## Try it

Turn a wheel in Simulation and watch the rotor spin, or select any piece to see its part number.

Bill of materials

• 1 × Technic Axle 8
• 2 × Wheel Balloon with Axle Hole
• 2 × Technic Beam 1 × 11.5 Double Bent Thick
• 2 × Technic Gear 12 Tooth Bevel
• 2 × Technic Pin Long with Friction Ridges Lengthwise, 1 Center Slot
• 4 × Technic Axle 4
• 1 × Plate Special 2 × 2 with 2 Pin Holes
• 2 × Technic Axle and Pin Connector Perpendicular 3L with Pin Hole
• 2 × Technic Beam 3 × 3 L-Shape Thin
• 4 × Technic Axle Connector with Axle Hole [Reinforced]
• 4 × Technic Axle and Pin Connector Perpendicular
• 1 × Technic Axle 6
• 4 × Technic Bush 1/2 Smooth with Axle Hole Semi-Reduced
• 1 × Seat / Chair 2 × 2
• 1 × Technic Axle 3
• 2 × Technic Pin with Friction Ridges Lengthwise with No Center Slots
• 4 × Technic Pin Connector Round [Slotted]
• 3 × Technic Beam 1 × 5 Thin
• 5 × Technic Pin 3/4
• 4 × Plate Round 1 × 1 with Solid Stud
• 2 × Technic Pin Long with Friction Ridges Lengthwise and Stop Bush [3 Lateral Holes, Big Pin Hole]
• 3 × Rigid Hose 3 mm 12L
• 3 × Technic Axle 10
• 1 × Technic Axle and Pin Connector Angled #5 - 112.5°
• 1 × Technic Axle 2 Notched
• 2 × Technic Axle Connector Ridged [with x Hole x Orientation]
