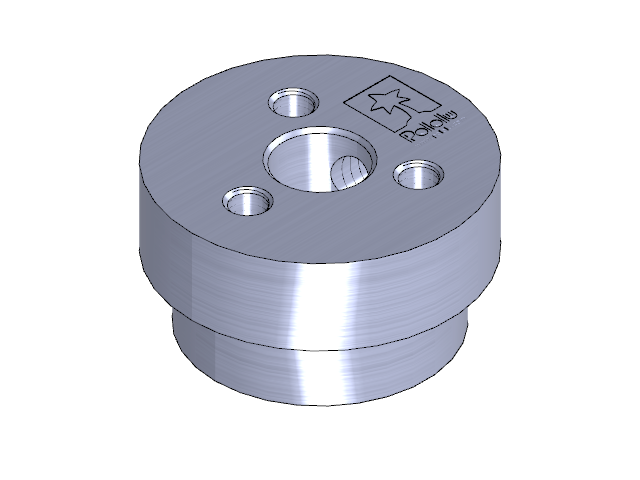

Pololu's aluminium scooter wheel adapter, from their own CAD: a stepped boss 22 mm across and 12 mm tall with a 6.37 mm bore for a 1/4" shaft and three holes tapped M3 on a 12.4 mm circle. Two M4 set screws through the side clamp it to the shaft. It carries a scooter wheel on a motor shaft, through the matching plate.
One of the Aluminum Scooter Wheel Adapter family.
- Made by
Pololu- SKU
- 2675
- Kind
- 3D model
- Licence
- CC-BY-SA-4.0
- Keywords
- pololu, adapter, scooter, wheel, shaft, aluminium, 1/4in, 1/4 inch
| Overall size (X × Y × Z) | 22 × 21.9 × 12 mm |
|---|---|
| Type | wheel adapter |
| Material | aluminium |
| Weight | 14.7 g with washer and screws |
| Bore | 6.37 mm |
| Across flats | 22 mm |
