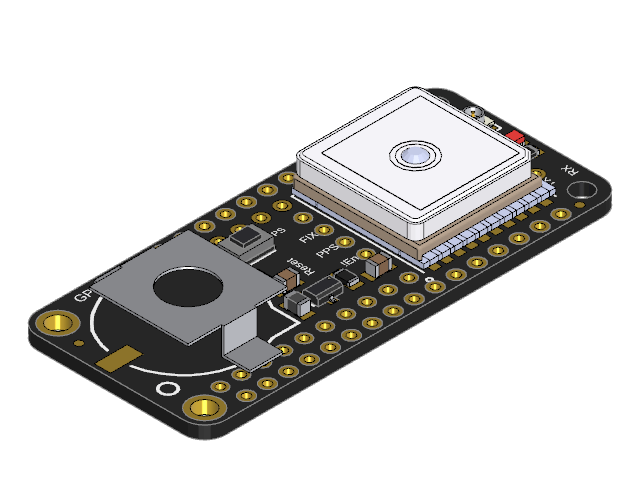

Adafruit's Ultimate GPS FeatherWing, which stacks onto a Feather by its header rows.
One of the Feather Shield family.
- Made by
Adafruit- SKU
- 3133
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-3.0
- Keywords
- adafruit, featherwing, gps, ultimate, mtk3333, glonass, uart, serial, receiver
| Overall size (X × Y × Z) | 50.8 × 22.9 × 6.7 mm |
|---|---|
| PCB size | 50.8 × 22.9 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 4 × Ø2.5 mm |
| Through-hole pads | 48 |
| Components | 11 |
| Function | GPS receiver |
| Form factor | featherwing |
| Chip | MTK3333 |
| Wireless | GPS+GLONASS |
| Interface | UART |
| Logic level | 3.3 V |
| Current | 29 mA tracking, 35 mA navigating |
| Weight | 8.8 g |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 1 | Coin Cell HolderKeystone 3000 | CR1220 | B1 | 3000 / 3001 datasheet (Keystone Electronics) |
| × 1 | GPS Module, FGPMMOPA6H | FGPMMOPA6H | U1 | FGPMMOPA6H datasheet (GlobalTop) |
| × 1 | SMD Capacitor0805 | 0.1uF | C1 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SMD Capacitor0805 | 10uF | C2 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SMD Inductor0805 | Ferrite | FB1 | |
| × 1 | SMD LED0805 · red | RED | LED1 | |
| × 1 | SMD Resistor0805 | 100K | R2 | RC_L series datasheet (Yageo) |
| × 1 | SMD Resistor0805 | 470 ohm | R1 | RC_L series datasheet (Yageo) |
| × 1 | SMD Tactile SwitchKMR2 | KMR2 | SW1 | |
| × 1 | SOTSOT-23W | DMG3415U-7 | Q1 | DMG3415U datasheet (Diodes Incorporated) |
| × 1 | U.FL Connector | uFL | X1 | U.FL datasheet (Hirose) |
