Name: Prop-Maker FeatherWing
Brand: Adafruit

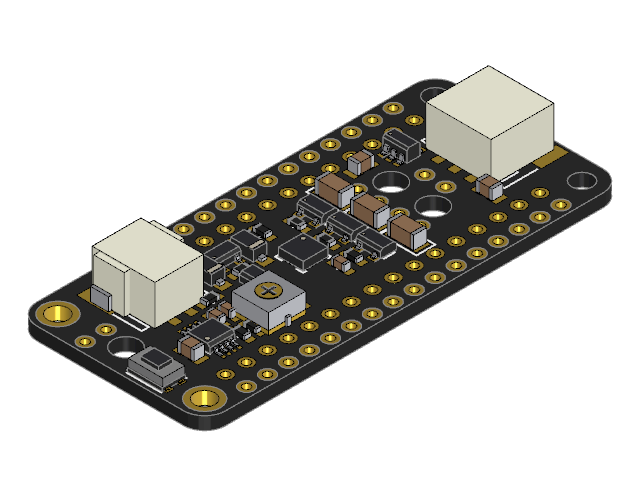

Adafruit's Prop-Maker FeatherWing, which stacks onto a Feather by its header rows.

Made by: Adafruit
SKU: 3988
Kind: Circuit board (PCB)
Licence: CC-BY-SA-3.0
Keywords: adafruit, featherwing, maker, prop, lis3dh, accelerometer, amplifier, audio, led driver, i2c

Overall size (X × Y × Z)	50.8 × 22.9 × 8.2 mm
PCB size	50.8 × 22.9 mm
PCB thickness	1.6 mm
Mounting holes	4 × Ø2.5 mm, 3 × Ø3.2 mm
Through-hole pads	64
Components	34
Function	LED driver, audio amplifier and accelerometer
Form factor	featherwing
Chip	LIS3DH
Interface	I2C
Logic level	3.3 V
Weight	4.8 g

Components
Qty	Part	Value	References	Datasheet
× 5	SMD Resistor0603	100k	R1, R4, R5, R6, R11	RC_L series datasheet (Yageo)
× 4	SMD Capacitor0805	10uF	C1, C2, C3, C15	X7R SMD MLCC series datasheet (KEMET)
× 4	SOTSOT-23W	DMG3406	Q2, Q4, Q5, Q6	DMG3406L datasheet (Diodes Incorporated)
× 3	SMD Capacitor0603	1uF	C4, C9, C13	X7R SMD MLCC series datasheet (KEMET)
× 2	SMD Capacitor1206	1.75o	R8, R9	X7R SMD MLCC series datasheet (KEMET)
× 2	SMD DiodeSOD-123	MBR120	D1, D2	MBR120VLSF datasheet (onsemi)
× 2	SMD Resistor0603	10K	R2, R3	RC_L series datasheet (Yageo)
× 2	SMD Resistor0603	100	R12, R13	RC_L series datasheet (Yageo)
× 1	QFN / DFNLGA-16 3x3 P0.5	LIS3DH	IC4	LIS3DH datasheet (STMicroelectronics)
× 1	SMD Capacitor1206	3o	R7	X7R SMD MLCC series datasheet (KEMET)
× 1	SMD Tactile SwitchKMR2	KMR2	SW1
× 1	SMD Trimmer3314J	10K trim	VR2	3314J / 3314G datasheet (Bourns)
× 1	SOIC / SSOP / TSSOPMSOP-8	PAM8302AASCR	U5	PAM8302A datasheet (Diodes Incorporated)
× 1	SOTSOT-23-5	74AHCT1G125DBV	IC2	SN74AHCT1G125/74AHCT1G125 datasheet (Texas Instruments)
× 1	SOTSOT-23W	DMG3415U-7	Q3	DMG3415U datasheet (Diodes Incorporated)
× 1	Wire-to-Board ConnectorPH side entry · 2	CON_JST_PH_2PIN_MTPH2	X6	JST PH datasheet (JST)
× 1	Wire-to-Board ConnectorPicoBlade top entry · 2	CON_MOLEX_2P	U$1
× 1	Wire-to-Board ConnectorPH side entry · 3	JST PH 3	NEO	JST PH datasheet (JST)
