Fermion: BMP585 High-Precision Barometric Pressure Sensor — DFRobot SEN0666.
One of the Environmental Sensor family.
- Made by
DFRobot- SKU
- SEN0666
- Kind
- Circuit board (PCB)
- Licence
- LicenseRef-DFRobot-CAD
- Keywords
- dfrobot, sen0666, fermion, bmp585, high, precision, barometric, pressure, barometer, i2c, spi, i3c
| Overall size (X × Y × Z) | 19 × 16 × 3.6 mm |
|---|---|
| PCB size | 19 × 16 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 2 × Ø2 mm |
| Through-hole pads | 7 |
| Components | 12 |
| Function | barometric pressure sensor |
| Chip | BMP585 |
| Interface | I2C, I3C, SPI |
| Supply voltage | 3.3 V |
| Current | 200 µA |
| Range | 30-125 kPa |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 6 | SMD Capacitor0201 | B3, B4, B6, B7, B8, B9 | X7R SMD MLCC series datasheet (KEMET) | |
| × 2 | SMD Capacitor0402 | B11, B12 | X7R SMD MLCC series datasheet (KEMET) | |
| × 2 | SMD Resistor0402 | B1, B5 | RC_L series datasheet (Yageo) | |
| × 1 | DFRobot Component, 2.5 x 1.0 x 0.7 mm (grey) | B2 | ||
| × 1 | DFRobot Component, 3.2 x 3.2 x 1.9 mm (grey) | BMP585 | U2 | BMP585 datasheet (Bosch Sensortec) |
Variations

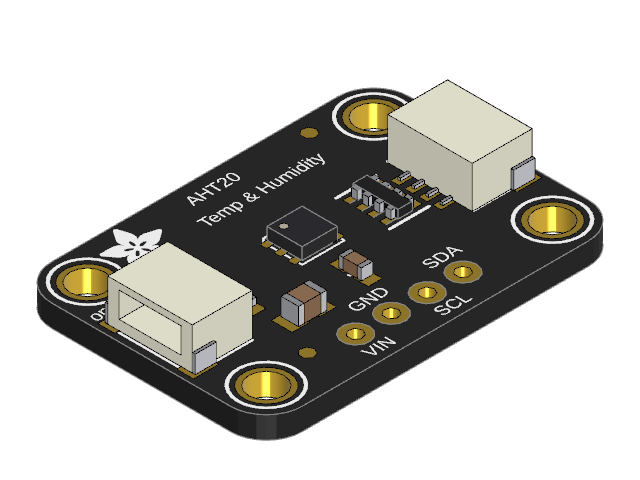

AHT20 Temperature & Humidity SensorAdafruit
BME680 SensorAdafruit
DPS310 Barometric Pressure SensorAdafruit
MCP9808 Precision Temperature SensorAdafruit

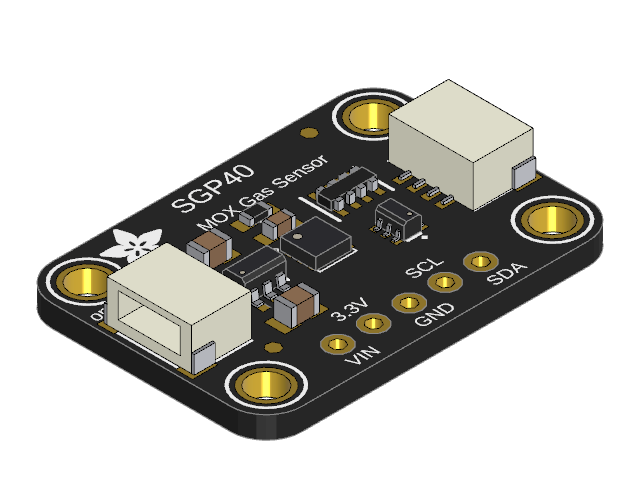

SGP40 Air Quality SensorAdafruit
SHT40 Temperature & Humidity SensorAdafruit
BMV080 PM2.5 Air Quality SensorDFRobot- Fermion: BMP585 High-Precision Barometric Pressure SensorDFRobot
BMP581 High-Precision Barometric Pressure SensorDFRobot
Gravity: BMP585 High-Precision Barometric Pressure SensorDFRobot
Gravity Electrochemical Gas SensorDFRobot
IIC Ozone SensorDFRobot
MICS-4514 MEMS Gas Concentration Detection SensorDFRobot
Miniature Non-contact Liquid Level SensorDFRobot
SFA40 HCHO SensorDFRobot

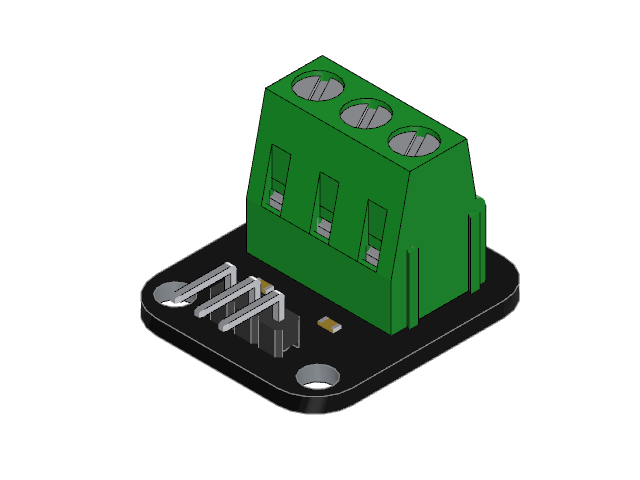

DS18B20 Sensor AdapterGeneric
