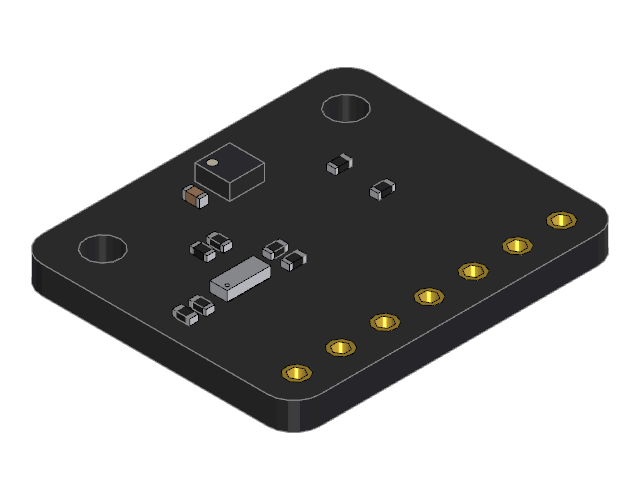

Fermion: BMP581 High-Precision Barometric Pressure Sensor — DFRobot SEN0667.
One of the Environmental Sensor family.
- Made by
DFRobot- SKU
- SEN0667
- Kind
- Circuit board (PCB)
- Licence
- LicenseRef-DFRobot-CAD
- Keywords
- dfrobot, sen0667, fermion, bmp581, high, precision, barometric, pressure, barometer, i2c, spi, i3c
| Overall size (X × Y × Z) | 19 × 16 × 2.6 mm |
|---|---|
| PCB size | 19 × 16 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 2 × Ø2 mm |
| Through-hole pads | 7 |
| Components | 11 |
| Function | barometric pressure sensor |
| Chip | BMP581 |
| Interface | I2C, I3C, SPI |
| Supply voltage | 3.3 V |
| Current | 200 µA |
| Range | 30-125 kPa |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 8 | SMD Resistor0402 | B1, B3, B4, B5, B6, B7, B8, B9 | RC_L series datasheet (Yageo) | |
| × 1 | DFRobot Component, 2.5 x 1.0 x 0.7 mm (grey) | B2 | ||
| × 1 | QFN / DFNDFN-8 2x2 P0.5 | BMP581 | U3 | BMP581 datasheet (Bosch Sensortec) |
| × 1 | SMD Capacitor0402 | B11 | X7R SMD MLCC series datasheet (KEMET) |
