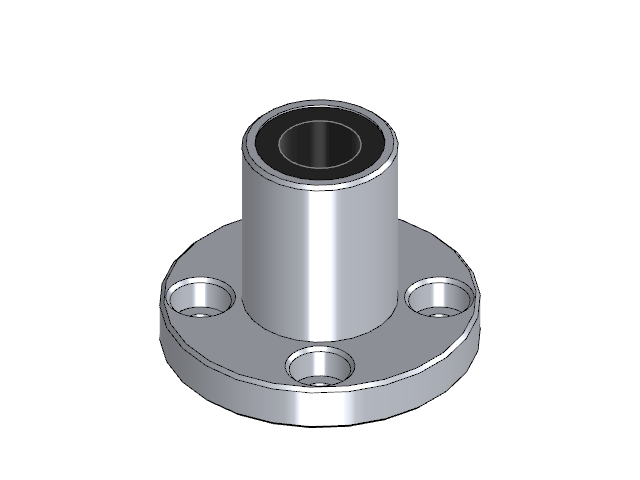

An LMF10UU round-flange linear ball bushing: 10 mm shaft, 19 mm body, 29 mm long, on a 39 mm round flange 6 mm thick with four counterbored M4 holes on a 29 mm circle and a rubber seal at each end.

One of the Linear Bearing family.

Made by

ReDo.Pro

Kind

Parametric part

Licence

CC BY-SA 4.0

Keywords

bearing, linear bearing, ball bushing, lmf10uu, flanged, flange, round flange, 10 mm shaft, rod, linear motion, 3d printer
