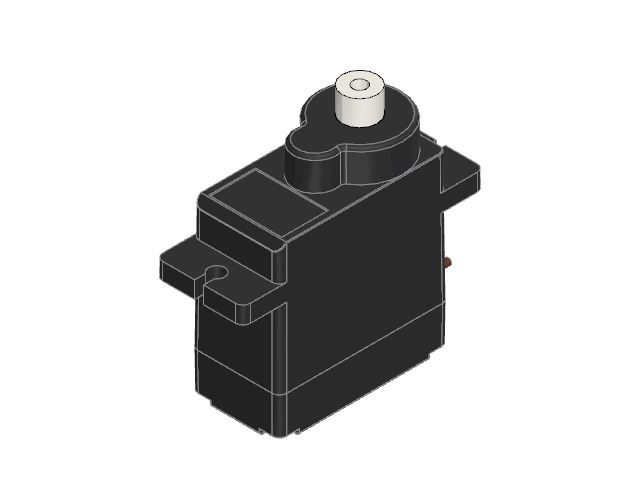

Sub-Micro Servo SG51R

A 5 g sub-micro servo, smaller than a 9 g micro, with mounting ears 26 mm apart and a 3.9 mm output spline.

One of the Micro Servo family.

Made by: Adafruit
SKU: 2201
Kind: 3D model
Licence: MIT
Keywords: servo, sub-micro servo, sg51r, rc, motor, actuator, adafruit, 5g

Overall size (X × Y × Z)	30.1 × 11.8 × 24.9 mm
Type	sub-micro servo
Model	SG51R
Supply voltage	4.8 V
Torque	0.6 kg-cm stall at 4.8 V
Speed	0.1 s/60° at 4.8 V
Weight	5 g
Spline	22 teeth
