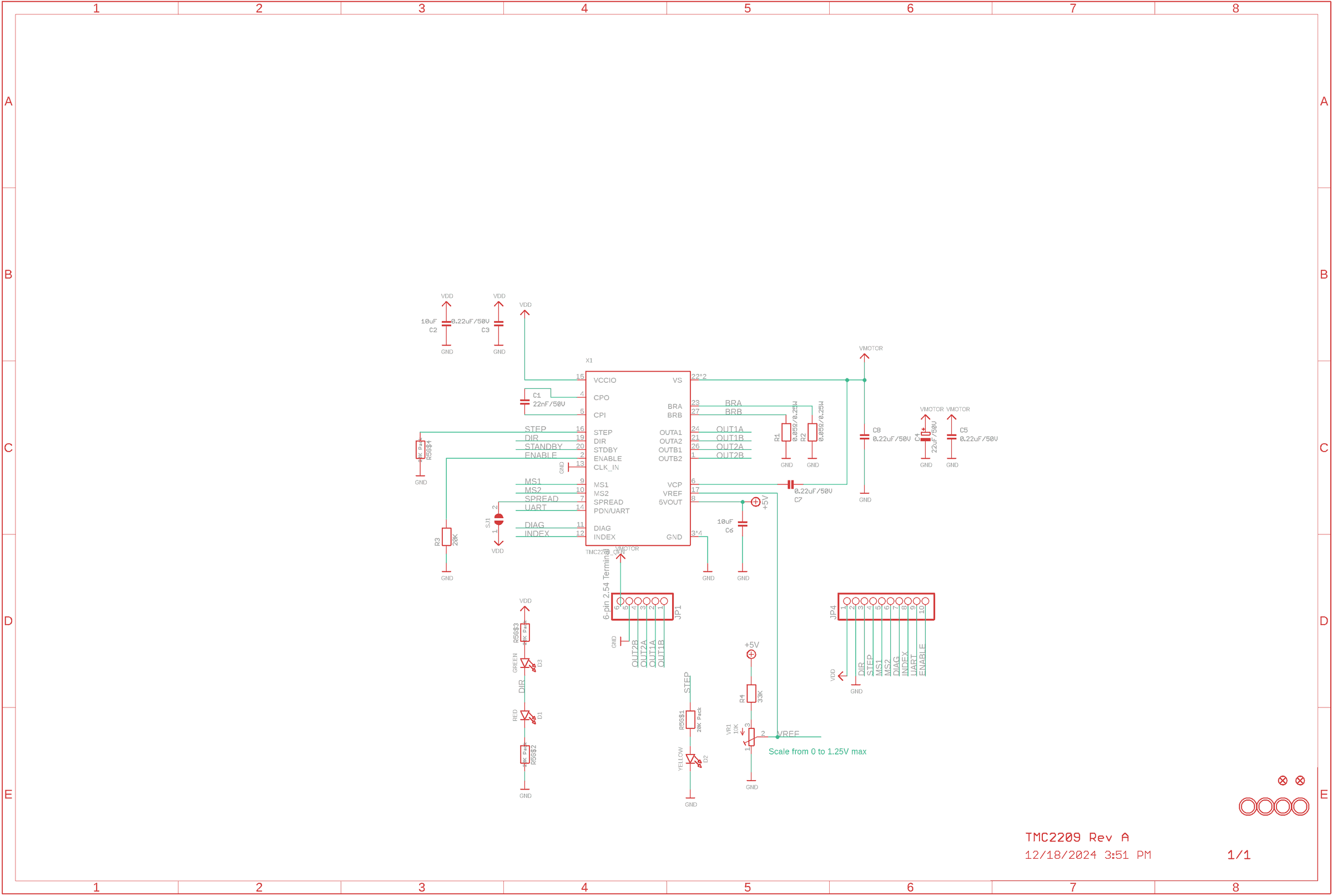

TMC2209 Stepper Driver

Adafruit's TMC2209 silent stepper motor driver, sharing the A4988's carrier: a 10-way and a 6-way header row and four 2.2 mm mounts.

One of the Stepper Motor Driver family.

Made by
Adafruit
SKU
6121
Kind
Circuit board (PCB)
Licence
CC-BY-SA-3.0
Keywords
tmc2209, stepper, motor, driver, silent, microstepping, breakout, uart
Overall size (X × Y × Z)26.7 × 24.1 × 7.1 mm
PCB size26.7 × 24.1 mm
PCB thickness1.6 mm
Mounting holes4 × Ø2.2 mm
Through-hole pads16
Components18
Functionmotor driver
ChipTMC2209
InterfaceSTEP/DIR, UART
Logic level3-5 V
Supply voltage5-29 V
Currentup to 2 A
Microsteppingup to 1/256
Weight4.4 g
