SparkFun EasyDriver v4.5

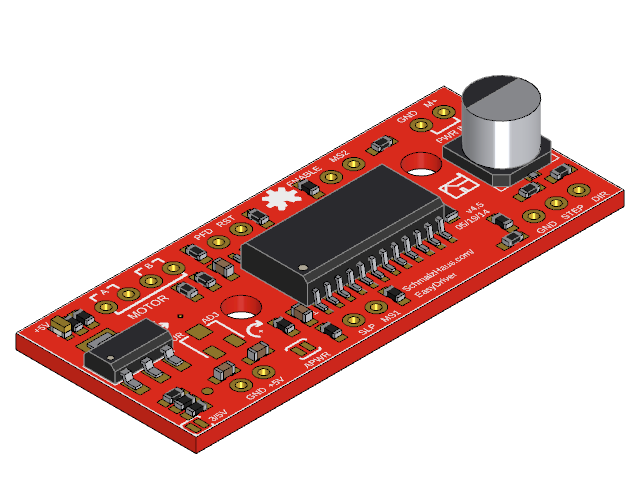

SparkFun's EasyDriver v4.5 board outline: 48.26 by 20.32 mm with 2 plated holes, traced from the Eagle board file SparkFun publish for product 12779, with the component bodies eagleUp rendered on it.

One of the Stepper Motor Driver family.

Made by
SparkFun
SKU
12779
Kind
Circuit board (PCB)
Licence
CC-BY-SA-4.0
Keywords
board, easydriver, pcb, sparkfun, easy driver, stepper driver, motor driver, a3967
Overall size (X × Y × Z)48.3 × 20.3 × 7.5 mm
PCB size48.3 × 20.3 mm
PCB thickness1.6 mm
Mounting holes2 × Ø3.3 mm
Through-hole pads18
Components28
Functionstepper motor driver
Form factorboard
ChipA3967
InterfaceSTEP/DIR
Logic level3.3 or 5 V
Supply voltage6-30 V
Current150-700 mA per phase, adjustable
Microsteppingfull, 1/2, 1/4, 1/8
