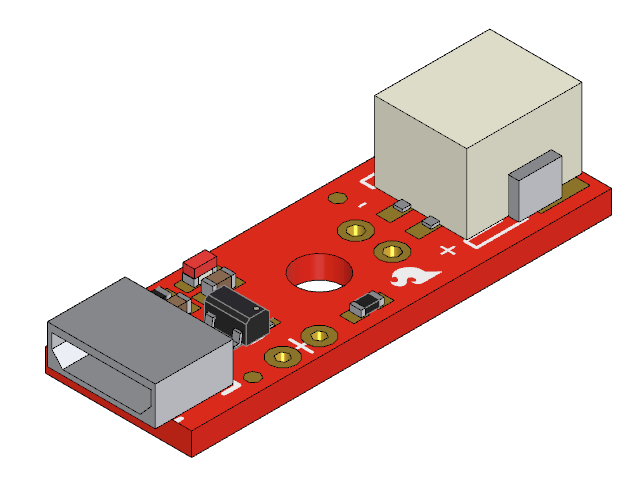

SparkFun's LiPo Charger Basic microUSB board outline: 29.21 by 10.16 mm with 3 plated holes, traced from the Eagle board file SparkFun publish for product 10217, with the component bodies eagleUp rendered on it.
One of the Battery Charger family.
- Made by
SparkFun- SKU
- 10217
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- basic, board, charger, lipo, microusb, pcb, sparkfun, li-po, lipoly, micro usb, usb, mcp73831
| Overall size (X × Y × Z) | 30.4 × 10.2 × 7.2 mm |
|---|---|
| PCB size | 29.2 × 10.2 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 1 × Ø3.3 mm |
| Through-hole pads | 4 |
| Components | 8 |
| Function | charger |
| Form factor | board |
| Chip | MCP73831 |
| USB connector | Micro-B |
| Current | 500 mA charge |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 2 | SMD Capacitor0603 | 4.7uF | C3, C4 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SMD LED0603 · red | RED | D11 | |
| × 1 | SMD Resistor0603 | 2.0k | R4 | RC_L series datasheet (Yageo) |
| × 1 | SMD Resistor0603 | 330 | R3 | RC_L series datasheet (Yageo) |
| × 1 | SOTSOT-23-5 | MCP73831 | U1 | MCP73831 datasheet (Microchip) |
| × 1 | USB ReceptacleMicro-B | Micro USB | JP9 | |
| × 1 | Wire-to-Board ConnectorPH SMD side entry · 2 | JST | JP1 | JST SH datasheet (JST)JST PH datasheet (JST)JST XH datasheet (JST) |
