SparkFun's LiPo Charger Basic miniUSB board outline: 33.02 by 12.70 mm with 3 plated holes, traced from the Eagle board file SparkFun publish for product 10401, with the component bodies eagleUp rendered on it.
One of the Battery Charger family.
- Made by
SparkFun- SKU
- 10401
- Kind
- Circuit board (PCB)
- Licence
- CC-BY-SA-4.0
- Keywords
- basic, board, charger, lipo, miniusb, pcb, sparkfun, li-po, lipoly, mini usb, usb, mcp73831
| Overall size (X × Y × Z) | 33.9 × 12.7 × 7.2 mm |
|---|---|
| PCB size | 33 × 12.7 mm |
| PCB thickness | 1.6 mm |
| Mounting holes | 1 × Ø3.3 mm |
| Through-hole pads | 2 |
| Components | 8 |
| Function | charger |
| Form factor | board |
| Chip | MCP73831 |
| USB connector | Mini-B |
| Qty | Part | Value | References | Datasheet |
|---|---|---|---|---|
| × 2 | SMD Capacitor0402 | 4.7uF | C3, C4 | X7R SMD MLCC series datasheet (KEMET) |
| × 1 | SMD LED0603 · red | RED | D11 | |
| × 1 | SMD Resistor0402 | 2K | R4 | RC_L series datasheet (Yageo) |
| × 1 | SMD Resistor0402 | 330 | R3 | RC_L series datasheet (Yageo) |
| × 1 | SOTSOT-23-5 | MCP73831 | U1 | MCP73831 datasheet (Microchip) |
| × 1 | USB ReceptacleMini-B | Micro USB | X1 | 2486 01 USB Mini-B datasheet (Lumberg) |
| × 1 | Wire-to-Board ConnectorPH SMD side entry · 2 | LiPo Battery | JP7 | JST PH datasheet (JST) |
Variations
Micro Lipo Charger USB-CAdafruit
PowerBoost 1000CAdafruit

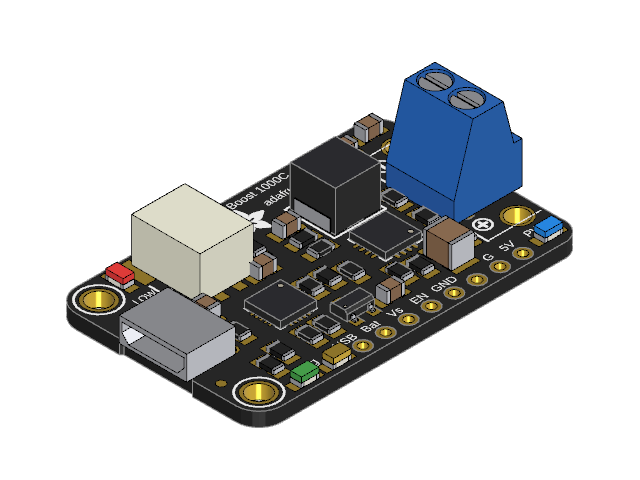

PowerBoost 1000C with Terminal BlockAdafruit
