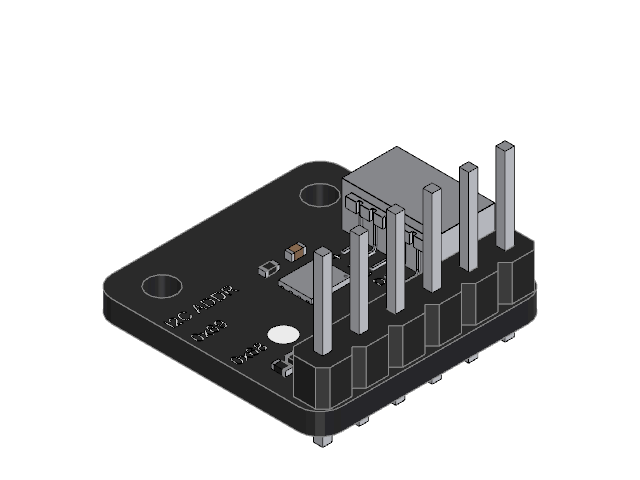

BMI323 6 DOF IMU Sensor

Fermion: BMI323 6 DOF IMU Sensor — DFRobot SEN0693.

One of the IMU Board family.

Made by
DFRobot
SKU
SEN0693
Kind
Circuit board (PCB)
Licence
LicenseRef-DFRobot-CAD
Keywords
dfrobot, sen0693, fermion, bmi323, dof, imu, sensor, accelerometer, gyroscope, i2c, 6-axis
Overall size (X × Y × Z)16 × 16 × 11.5 mm
PCB size16 × 16 mm
PCB thickness1.5 mm
Mounting holes2 × Ø2 mm
Through-hole pads6
Components14
FunctionIMU
ChipBMI323
InterfaceI2C
Supply voltage3.3 V
Current720 µA
Resolution16 bit
Range±2 to ±16 g, ±125 to ±2000 °/s
