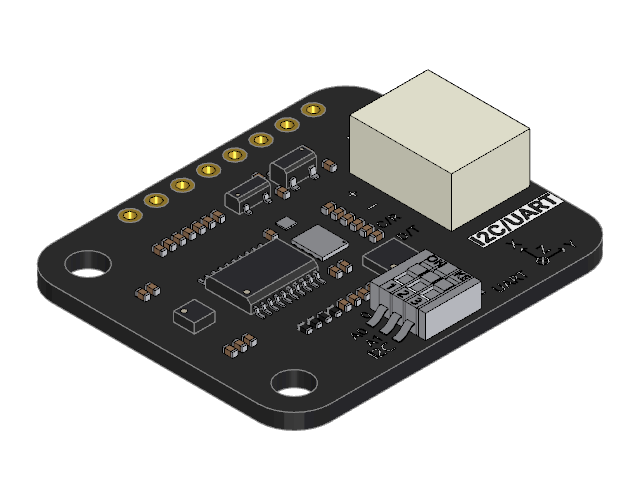

Name: 10 DOF IMU Sensor
Brand: DFRobot

Gravity: 10 DOF IMU Sensor — DFRobot SEN0696.

One of the IMU Board family.

Made by: DFRobot
SKU: SEN0696
Kind: Circuit board (PCB)
Licence: LicenseRef-DFRobot-CAD
Keywords: dfrobot, sen0696, gravity, dof, imu, sensor, accelerometer, gyroscope, magnetometer, barometer, i2c, uart

Components
Qty	Part	Value	References	Datasheet
× 29	SMD Capacitor0402		B3, B4, B5, B10, B13, B14, B15, B16, B17, B19, B21, B23, B24, B25, B26, B27, B29, B30, B31, B32, B35, B36, B37, B38, B39, B40, B41, B42, B43	X7R SMD MLCC series datasheet (KEMET)
× 4	SMD Resistor0402		B6, B7, B8, B9	RC_L series datasheet (Yageo)
× 1	DFRobot Component, 1.0 x 0.1 x 0.2 mm (grey)		B2
× 1	DFRobot Component, 1.1 x 1.0 x 0.6 mm (grey)	BMM350	U5	BMM350 datasheet (Bosch Sensortec)
× 1	DFRobot Component, 3.0 x 2.6 x 0.7 mm (grey)	BMI323	U6	BMI323 datasheet (Bosch Sensortec)
× 1	DFRobot Component, 8.4 x 5.4 x 2.5 mm (grey)		B1
× 1	QFN / DFNDFN-8 2x2 P0.5	BMP581	U2	BMP581 datasheet (Bosch Sensortec)
× 1	QFN / DFNWQFN-20 3x3 P0.4	CS32L010	U1	CS32L010 datasheet (ChipSea)
× 1	SOIC / SSOP / TSSOPTSSOP-20	TXS0108EPW	U7	TXS0108E datasheet (Texas Instruments)
× 1	SOTSOT-23-3	ME6206A18XG	U4	ME6206 datasheet (Microne)
× 1	SOTSOT-23-5	RT9080	U8	RT9080 datasheet (Richtek)
× 1	Wire-to-Board ConnectorPH side entry · 4		B12	JST PH datasheet (JST)
