SparkFun LSM9DS1 Breakout

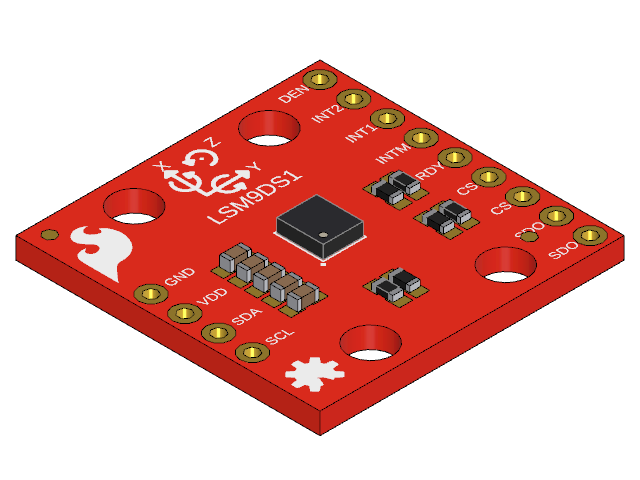

SparkFun's LSM9DS1 Breakout board outline: 22.86 by 22.86 mm with 4 plated holes, traced from the Eagle board file SparkFun publish for product 13284, with the component bodies eagleUp rendered on it.

One of the IMU Board family.

Made by
SparkFun
SKU
13284
Kind
Circuit board (PCB)
Licence
CC-BY-SA-4.0
Keywords
board, breakout, lsm9ds1, pcb, sparkfun, imu, accelerometer, gyroscope, magnetometer, i2c, spi
Overall size (X × Y × Z)22.9 × 22.9 × 2.7 mm
PCB size22.9 × 22.9 mm
PCB thickness1.6 mm
Mounting holes4 × Ø3.3 mm
Through-hole pads13
Components12
FunctionIMU
Form factorboard
ChipLSM9DS1
InterfaceI2C, SPI
Supply voltage3.3 V
Range±2/±4/±8/±16 g, ±245/±500/±2000 dps, ±4/±8/±12/±16 gauss
Statusdiscontinued
